Service Hints & Tips |
Document ID: MWER-3THTKV |
PS/1 - 2155 78C/79C/87C/CC1/NM1 (SL-B) System Information
Applicable to: United States
PS/1 - 2155 (SL-B) System Information
2155 System Architecture
|
Model |
2155 78C |
2155 79C |
2155 87C |
|
Processor |
486SX2/50 |
486SX2/50 |
486DX2/50 |
|
Cache / Max |
0 / 256KB |
0 / 256KB |
0 / 256KB |
|
Video Chipset |
CL-5428 |
CL-5428 |
CL-5428 |
|
VRAM / Max |
1MB / 1MB |
1MB / 1MB |
1MB / 1MB |
|
Disk Drive |
3.5" |
Combo* |
Combo* |
|
Hard Drive |
253 MB |
253 MB |
420 MB |
|
Memory / Max |
4 MB / 64 MB |
4 MB / 64 MB |
4 MB / 64 MB |
|
Modem Speed |
2400 bps |
2400 bps |
2400 bps |
|
Fax Speed (S/R) |
N/A |
N/A |
9600 / 4800 |
|
CD-ROM |
Matsushita 2x |
Matsushita 2x |
Matsushita 2x |
|
Sound Card |
Sound Blaster |
Sound Blaster |
Sound Blaster |
|
Model |
2155 NM1 |
2155 CC1 |
|
Processor |
486SX2/50 |
486DX2/50 |
|
Cache / Max |
0 / 256KB |
0 / 256KB |
|
Video Chipset |
CL-5428 |
CL-5428 |
|
VRAM / Max |
1MB / 1MB |
1MB / 1MB |
|
Disk Drive |
3.5" |
3.5" |
|
Hard Drive |
340 MB |
340 MB |
|
Memory / Max |
4 MB / 64 MB |
4 MB / 64 MB |
|
Modem Speed |
2400 bps |
2400 bps |
|
Fax Speed (S/R) |
9600 / 4800 |
9600 / 4800 |
|
CD-ROM |
Matsushita 2x |
Matsushita 2x |
|
Sound Card |
Sound Blaster |
Aria 16 |
*The Combo drive integrates a 5.25" and a 3.5" diskette drive into a single 5.25" enclosure.
Cache denotes installed external cache, VRAM denotes installed video memory, Memory denotes installed system memory, Max denotes maximum expandability. Fax speed is listed only on machines whose modems have fax capabilities and are listed as (Send/Receive) bps.
Regular system memory is upgraded with 36-bit or 32-bit (parity or non-parity) industry standard 70ns 72-pin SIMM chips. If the machine has 2 SIMM sockets, it can handle up to a 32MB SIMM in each socket. If it has 4 SIMM sockets, it can handle up to a 16MB SIMM in each socket.
Video drivers for these machines are available on IBM's FTP site. The Windows 3.1 driver for the CL-GD5428 chipset is at ftp://ftp.infania.net/pccbbs/ps1/c5426_28.exe
|

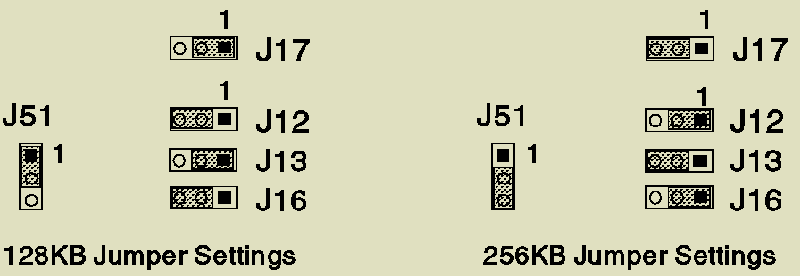

To upgrade cache memory on machines that have that capability (see product matrix), you will need to add either 4 (in bank 1 for 128K) or 8 (in both banks for 256K) 28-pin 32K x 8, 25ns SRAM modules. You will also need to add the appropriate TAG chip (32K x 8, 20ns SRAM for 256K ; 8K x 8, 20ns SRAM for 128K). If you are adding 256K of cache, you will also need to move the cache jumpers as shown below.
All of these machines use a standard IDE controller. This interface should support any standard IDE device. Some Enhanced IDE (EIDE) devices (namely hard drives larger than 528MB) may be able to function with the use of disk overlay software, normally supplied by the drive manufacturer, but is not supported by IBM. Though EIDE CD-ROMs are not supported on these machines, a CD-ROM with it's own ISA interface controller should work. Any ISA card (CD-ROM controller, modem, SCSI card) added to these machines needs to be non-"Plug and Play" to help insure compatability.
Processor Upgrade Matrix
|
Model |
CPU |
Upgrade Processor |
Installation Notes |
|
2155 78C |
SX2/50 |
487SX, P24T-63 |
J24: 1-2, J25: 1-2, J31: 2-3 for either |
|
2155 79C |
SX2/50 |
487SX, P24T-63 |
J24: 1-2, J25: 1-2, J31: 2-3 for either |
|
2155 87C |
DX2/50 |
P24T-63 |
J24: 1-2, J25: 1-2, J31: 2-3 |
|
2155 CC1 |
DX2/50 |
P24T-63 |
J24: 1-2, J25: 1-2, J31: 2-3 |
|
2155 NM1 |
SX2/50 |
487SX, P24T-63 |
J24: 1-2, J25: 1-2, J31: 2-3 for either |
The 487SX indicates the Intel 487SX math coprocessor. The P24T-63 indicates the Intel Pentium Overdrive Processor (63 Mhz). If you receive a 2462 Startup POST error after installing a Pentium Overdrive, you may need a BIOS chip upgrade (FRU 76H6938) Under installation notes (Jxx: y-z), Jxx denotes a jumper and y-z denotes its position. These are the only processor upgrades supported by IBM for these machines.
Phone Support for these machines is available from IBM on a fee basis over the IBM Club's 900# (1-900-555-2582). The first minute of this call is free, each additional minute is charged to your phone bill at a rate of $2.99/minute.
|
