Service Hints & Tips |
Document ID: GKEY-3HRB6T |
IBM PC300GL (Type 6272, 6282) - System board locations
Applicable to: World-Wide

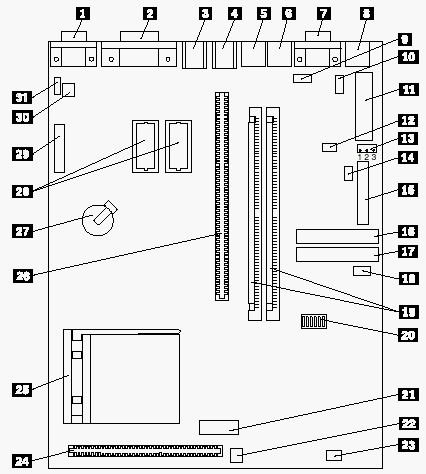

PC300 (Type 6272, 6282) - Pentium 133/166 MHz System Board Locations
|
Location No. |
Description |
|
1 |
Monitor connector |
|
2 |
Parallel port connector |
|
3 |
USB (Universal Serial Bus) 2 connector |
|
4 |
USB (Universal Serial Bus) 1 connector |
|
5 |
Mouse connector |
|
6 |
Keyboard connector |
|
7 |
Serial port A connector (Serial port B connector located on back |
|
8 |
Ethernet connector (All models Type; some models Type 6282) |
|
9 - J11 |
Serial port B system board connector |
|
10 |
AUI Ethernet connector |
|
11 |
Main power connector |
|
12 - J9 |
5 V auxiliary connector |
|
13 - J6 |
CMOS clear (password) jumper |
|
14 - J7 |
Power switch connector |
|
15 |
Diskette drive connector |
|
16 |
Primary EIDE connector |
|
17 |
Secondary EIDE connector |
|
18 - J8 |
Hard disk drive and power LED connector |
|
19 |
DIMM connectors |
|
20 |
Switch set (SW1) |
|
21 |
Power connector (3.3 V) |
|
22 |
Fan connector |
|
23 |
LAN activity LED connector |
|
24 |
L2 Cache connector |
|
25 |
Microprocessor socket |
|
26 |
Riser card connector |
|
27 |
Battery |
|
28 |
Video memory sockets |
|
29 |
VESA feature connector |
|
30 - J28 |
Wake-Up on LAN connector |
|
31 - J27 |
Modem wake-up connector |
|
