Parts Information |
Document ID: DDSE-443RAQ |
PC Server 310 - Hard Disk Drive Jumper Settings
Applicable to: World-Wide
Hard Disk drive Jumper Settings

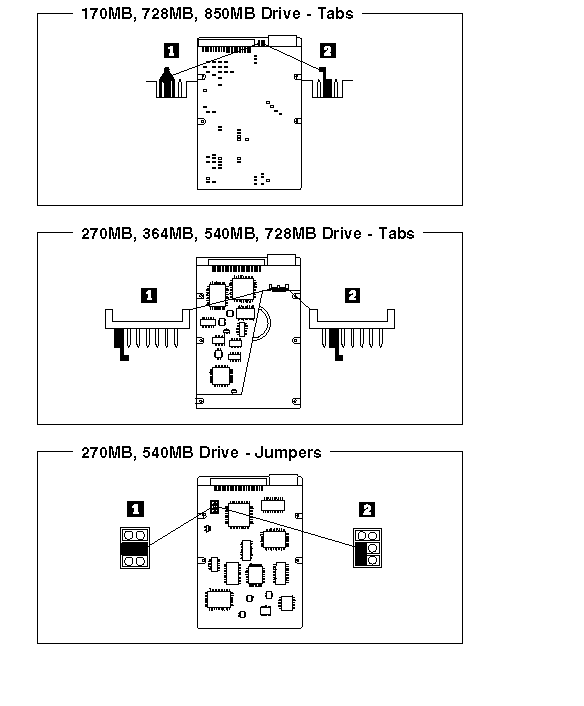

Hard Disk drives for Type 8639 computers use jumpers or tabs to set the drives as primary or secondary. Refer to the figures below for the hard disk drive settings.
1. Primary (Master) Drive
2. Secondary (Slave) Drive
|
