Netfinity 7000 - Controls
Applicable to: World-Wide

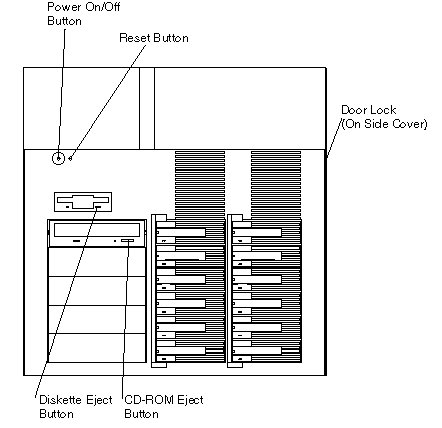

Door Lock: You can lock the door on the server to deter tampering with the internal components.
Power On/Off Button: Press this button to manually power the server on or off.
The server is designed to automatically restart after a power disruption. The Power On/Off button does not power-off the electrical power supplied to the server. To remove all electrical current from the server, you must unplug the server power cord from the electrical outlet.
Note:
The Power On/Off button is disabled when secure mode is selected from the System Configuration Utility program. Secure mode prevents accidental or unauthorized powering off of the server using the Power On/Off button.
Reset Button: Press this button to reset the system and run the power-on self-test (POST).
Note:
The Reset button is disabled when secure mode is selected from the System Configuration Utility program. Secure mode prevents accidental or unauthorized resetting of the server using the Reset button.
Diskette-Eject Button: Press this button to eject a diskette from the drive.
CD-ROM Eject Button: Press this button to eject the CD-ROM tray from its drive so that you can insert or remove a CD.
|
