Service Hints & Tips

Document ID: LWIK-3SMKWU

This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose.

TP 310,315 - LCD Display Module Removal

Applicable to: World-Wide

LCD Removal and Replacement:

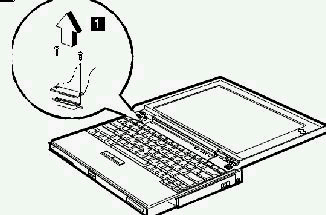

- Hinge Covers (5):

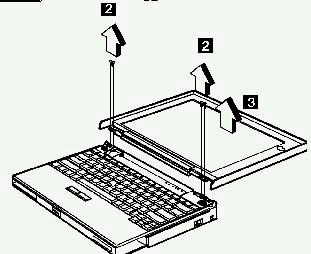

LCD Display Module:

Step	Size (Quantity)	Head and Color	Memo
1	M2 x 5L (2)	Pan head, Yellow Zn
2	M2.5 x 8L (4)	Pan head, silver	w/nylock paste

Note: Be sure to use the correct screw when replacing.

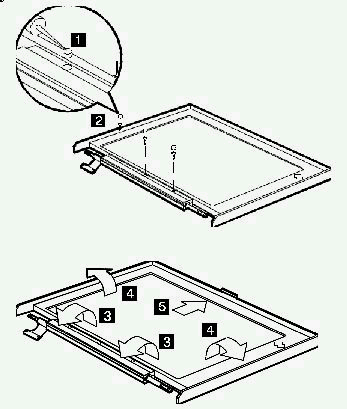

LCD Bezel:
Note:
When removing the LCD, take note of the following:
1. Be careful not to scratch the LCD cover when removing the screw covers.
2. The LCD cover has several latches. Release these latches; then remove the LCD cover. Be careful not to break the latches.

Step	Size (Quantity)	Head and Color	Memo
2	M2.5 x 6L (3)	Pan head, black	w/ nylock paste

Note: Be sure to use the correct screw when replacing.

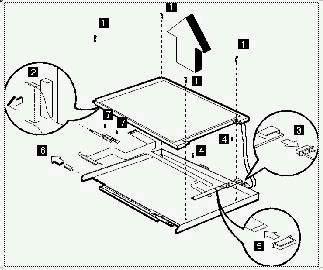

LCD, LCD Cover, LCD FPC Cable, LCD Left Hinge, and Inverter:
Important:
After you replace the LCD or inverter, follow the instructions in "Setting Inverter ID" on page 35.


Removal Procedures:
Remove LCD: 1--2--3 á á
Remove Inverter: 1--2--3--4--5 á á á á
Remove Left Hinge: 6--7 á
Remove LCD FPC cable: 1--2--3--4--5--6--7

Step	Size (Quantity)	Head and Color	Memo
1	M3 x 6L (4)	Bind head, silver
4	M2 x 3L (2)	Pan head, silver
7	M2.5 x 6L (2)	Pan head, black	w/nylock paste

Note: Be sure to use the correct screw when replacing.

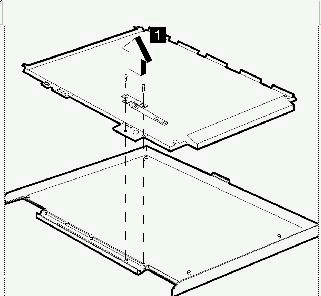

LCD Right Hinge and LCD Diaper:

Step	Size (Quantity)	Head and Color	Memo
1	M2.5 x 6L (2)	Pan head, black	w/nylock paste

Note: Be sure to use the correct screw when replacing.

	Search Keywords
	Hint Category	Hardware Maintenance Information
	Date Created	16-03-98
	Last Updated	07-04-98
	Revision Date	16-03-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad 310, ThinkPad 315
	Machine Type	2600
	Model	Various
