Service Hints & Tips

Document ID: JBAR-3TRJG4

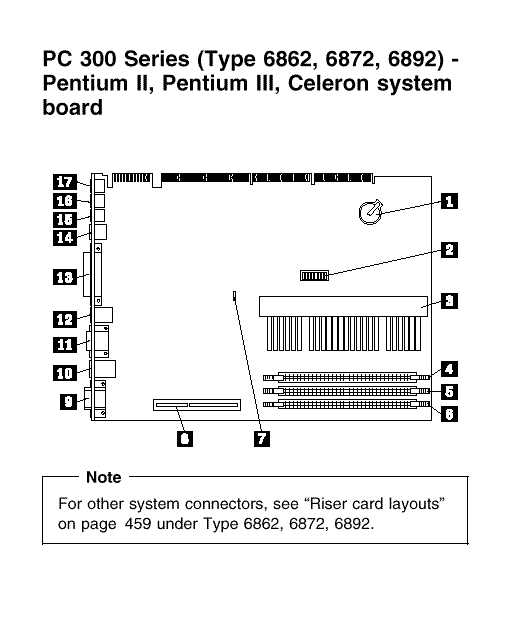

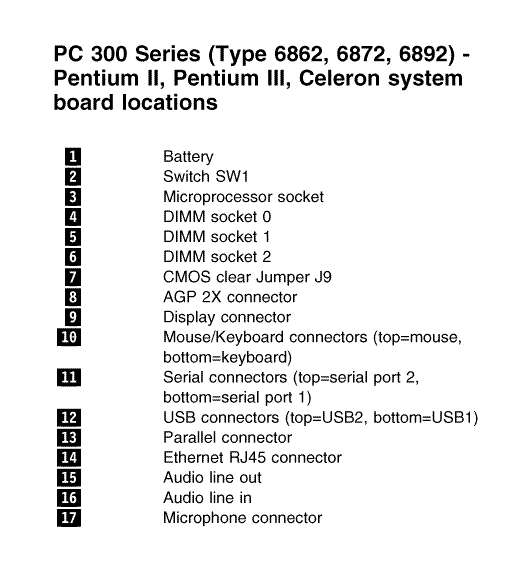

IBM PC300PL (Type 6862, 6872, 6892) - System Board Layouts

Applicable to: World-Wide


Search Keywords

Hint Category

Hardware Maintenance Information

Date Created

21-04-98

Last Updated

04-03-99

Revision Date

04-03-2000

Brand

IBM PC

Product Family

PC 300PL

Machine Type

6862, 6872, 6892

Model

all

TypeModel

Retain Tip (if applicable)
