Parts Information

Document ID: GSMH-3D6GA2

This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose.

TP 710T - Parts Listing

Applicable to: World-Wide

Parts Listing:

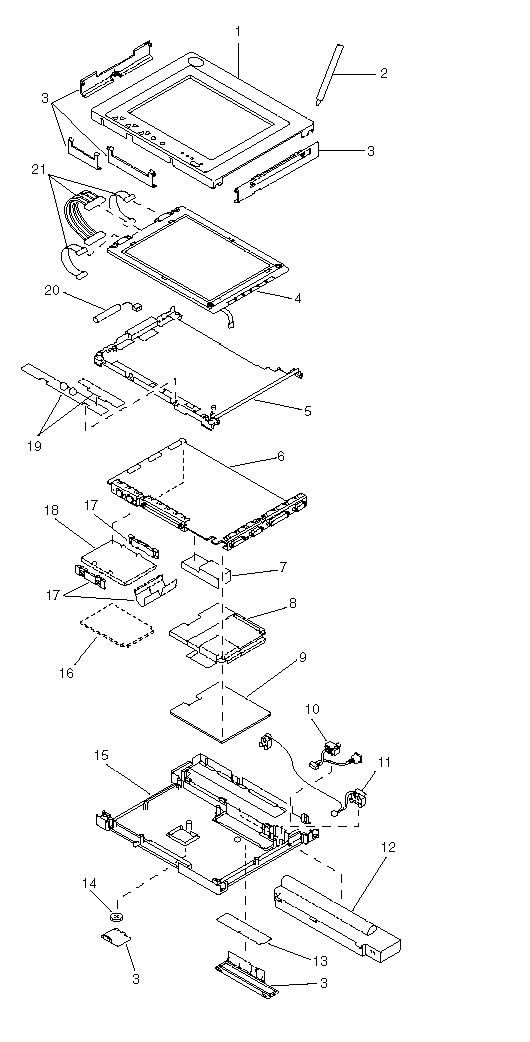

System Unit:

Index
1	Top Cover Assembly (TPF Model)	53G7099
	Top Cover (HDD Model)	53G7100
2	Pen Assembly	53G7115
3	Cover Group	53G7098
4	LCD Unit assembly (Includes 3 cables from index 18)	48G9685
5	Shield Cover	53G7101
6	System Board (TPF Model)	53G6963
	System Board (HDD Model)	53G6964
7	Inverter Card	53G7142
8	Miscellaneous Kit	53G6954
9	DC/DC Card	53G6965
10	Switch Cable Assembly	53G6966
11	Battery Terminal Assembly	53G6967
12	Battery Pack, Standard Size
	U.S., Canada, LA, AG, AP, Spain, and Portugal	48G9775
	Switzerland	48G9776
	Norway, Sweden, Finland	48G9777
	EMEA Others	48G9778
	Benelux	48G9800
	Japan	53G7143
12	Battery Pack, Half Size
	U.S., Canada, LA, AG, AP, Spain, and Portugal	53G7104
	Switzerland	53G7105
	Norway, Sweden, Finland	53G7106
	EMEA Others	53G7108
	Benelux	53G7107
	Japan	53G7110
13	SIMM 2MB	79F1002
	SIMM 4MB	79F1003
	SIMM 8MB	79F1004
14	Backup Battery	53G7114
15	Bottom Cover	53G7102
16	TPF 5MB, Non pre-loaded	48G9899
	TPF 10MB, Non pre-loaded	48G9900
	TPF 15MB, Non pre-loaded	49G0000

TPF, Pre-loaded:

TPF	10MB	15MB	15MB
P/N	PenDOS**	PenDOS	PenPoint**
U.S. English	53G7152	53G7151	53G7153
U.K. English	53G7155	53G7154	53G7156
French	53G7158	53G7157	53G7159
German	53G7161	53G7160	53G7162
Italian	53G7164	53G7163	53G7165
Spanish	53G7167	53G7166	53G7168
Japanese	53G7170	53G7169	53G7171

17	Miscellaneous Kit, Hard Disk Drive	48G9780
18	Hard Disk Drive, 60MB	53G6962
19	Switch and LED Card	48G9684
20	Sub Battery (Except countries below)	53G7092
	For Switzerland	53G7093
	For Benelux	53G7094
	For Japan	48G9814
21	LCD/ Digitizer Cable	48G9686

External FRUs:

External Diskette Drive (without cable)	48G9896
External Diskette Drive Cable	48G9897
Quick Charger	48G9820
Car Adapter
U.S./Canada/LA/Japan	07G1190
EMEA	35G3304
AC Adapter	07G1246
AP/EMEA	07G1851
Japan (2-Pin)	07G1248

Note:
** PenPoint is a trademark of the GO Corporation.
** PenDOS is a trademark of the Communications Intelligence Corporation.

Tools and Miscellaneous:
No special tools are needed to service the computer. The following lists the miscellaneous parts kits. (Numbers in parentheses show quantity)

Screw kit LCD screw (10) System board and DC/DC screw (10) Bottom cover screw long (10) Bottom cover screw short (10) Bus connector stud (10) Connector stud screw (10) Keyboard, Mouse screw (10) FDD screw (10) HDD bracket screw (10) System board bracket screw (10)	53G7113
Knob Sheet Knob sheet assembly (1) (Screen control button top)	53G7103
Label Group Serial No. label, blank (1) Artwork blank (1) Information label, H (1) Information label, H for Japan (1) Information label, T (1) Information label, T for Japan (1) Battery CSU label (1)	53G6952
Bracket Kit I/O bracket assembly (1) AT BUS,KBD/mouse bracket (1) IC card bracket (1) HDD bracket (1)	53G6953
Miscellaneous Kit Battery knob (1) Screw cap (1) Front foot (1) Rear foot (1) DC/DC shield (1)	53G6954
Tri-Connector Wrap Plug	72X8546
PC Test Card	35G4703
Audio Wrap Cable	66G5180
Screwdriver Kit	95F3598

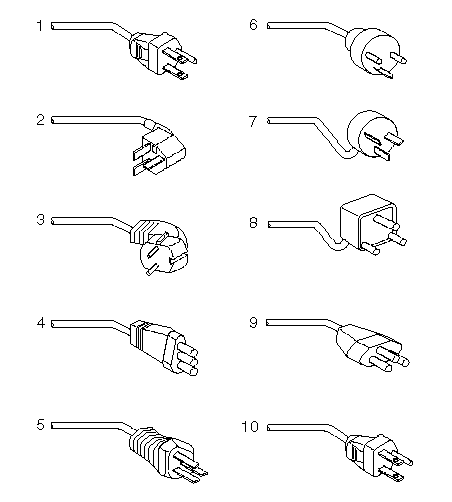

Power Cords:

Warning:
Use only the power cord certified for your country.

Index
1	Colombia, U.S., Venezuela	13F9959
	Japan, 2-pin	6454377
	Japan, 3-pin	65F0031
2	Hong Kong, Singapore, U.K.	14F0033
3	France, Germany, Spain	13F9979
4	Italy	14F0069
5	Australia, New Zealand	13F9940
6	Denmark	13F9997
7	Israel	14F0087
8	Bangladesh, Pakistan, Sri Lanka, South Africa	14F0015
9	Switzerland	14F0051
10	Thailand	1838574
