Service Hints & Tips |
Document ID: LWIK-3XPHWR |

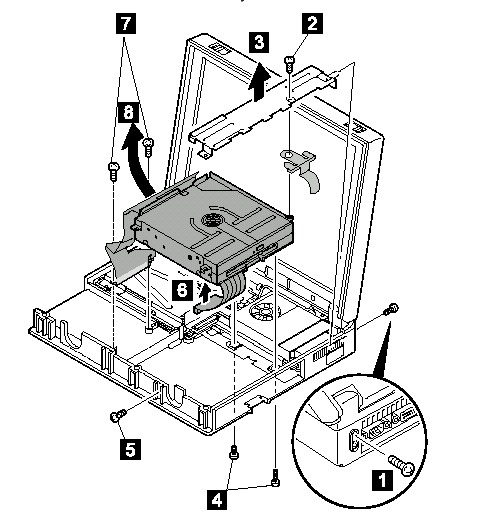

TP 380Z - 1060 Diskette drive assembly or CD-ROM drive assembly removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1020)
Hard Disk Drive (1030)
Keyboard Unit (1040)
Note: Make sure that the computer does not fall backward when you remove the CD-ROM or the diskette drive assembly.
|
