Service Hints & Tips

Document ID: GSMH-3EQD6T

TP 365X/XD - 1045 Base Cover Assembly/Keyboard Latch

Applicable to: World-Wide

1045 Base Cover Assembly / Keyboard Latch:
Battery Pack (1020)
Diskette Drive / CD-ROM Drive (1040)

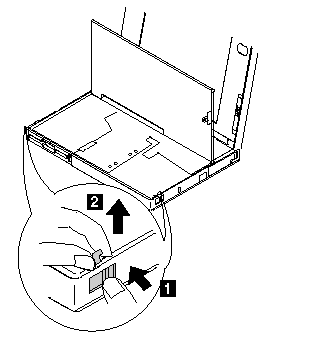

Note: Push the keyboard latch from the outside of the base cover ( 1 ), then pull out the latch ( 2 ). Some pressure might be needed to push the latch.

When replacing:
Assemble the parts as shown below; then replace the latch.

	Search Keywords
	Hint Category	Hardware Maintenance Information
	Date Created	28-02-97
	Last Updated	19-08-98
	Revision Date	18-08-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad 365X/XD
	Machine Type	2625
	Model	Various
