TP 760C/CD/L/LD/E/ED/EL/ELD - Front and rear views
Applicable to: World-Wide
Locations :

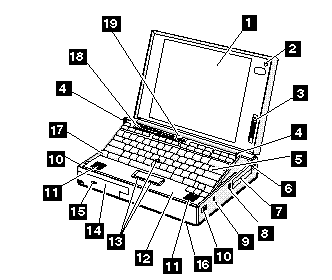

Front View
1 LCD
2 Built-in Microphone
3 Brightness Control
4 Keyboard Risers
5 Auto Tilt Keyboard
6 External-Input-Device connector
7 PCMCIA Slot
8 PCMCIA Slot
9 Security Keyhole
10 Release Latches
11 Built-in Speaker
12 Front Palm Rest
13 TrackPoint III
14 Removable Diskette Drive/CD-ROM Drive
15 CD-ROM Eject Button (CD-ROM model)
16 Front Infrared Port
17 Fn Key
18 LCD Indicator Panel
19 Volume Control

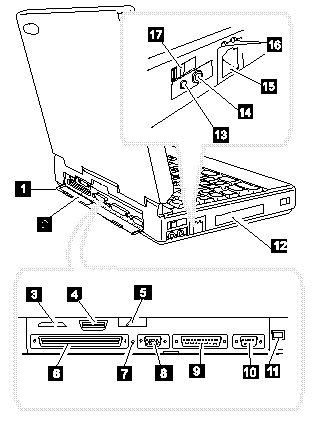

Rear View
1 Rear Door
2 Connector Door
3 MIDI/Joystick Port
4 External Diskette Drive Connector
5 Rear Infrared Port
6 System Expansion Connector
7 Power Shutdown Switch
8 External Display Connector
9 Parallel Connector
10 Serial Connector
11 Power Jack
12 Option Cover
13 Headphone Jack
14 Microphone/Line-in Jack
15 Modem/Fax Port
16 Video In/Out Ports (model unique)
17 Power Switch
|
