TP General - N45SL Locations
Applicable to: World-Wide
Locations:

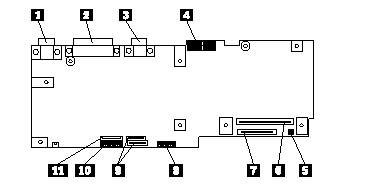

System Board:
|
1 |
External Display Connector |
|
2 |
Parallel Connector |
|
3 |
Serial Connector |
|
4 |
Memory Adapter Card Connector |
|
5 |
Auxiliary Device Connector |
|
6 |
Hard Disk Drive Connector |
|
7 |
Diskette Drive Connector |
|
8 |
Status Light Panel Connector |
|
9 |
Keyboard Connectors |
|
10 |
LCD Connector |
|
11 |
Modem Connector Jack |

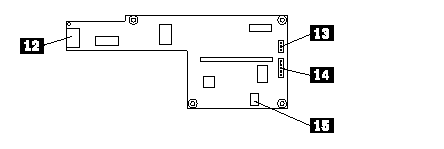

DC to DC Board (Top):
|
12 |
AC Adapter Connector |
|
13 |
Backup Battery Connector |
|
14 |
Battery Pack Connector |
|
15 |
Battery Status Indicator Connector |

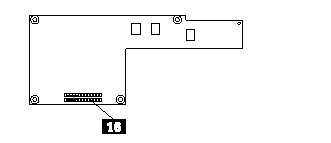

DC to DC Board (Bottom):
|
16 |
System Board Connector |
|
