Service Hints & Tips |
Document ID: DDSE-3QNJGC |
PCServer704 - Cover Information
Applicable to: World-Wide

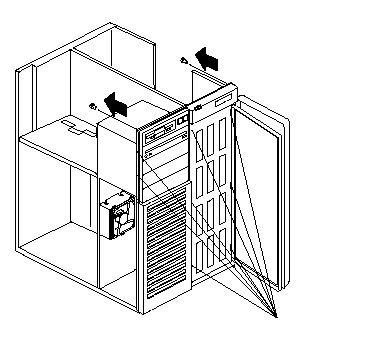

Cover (Front Bezel)
Depress Clips (8 places)

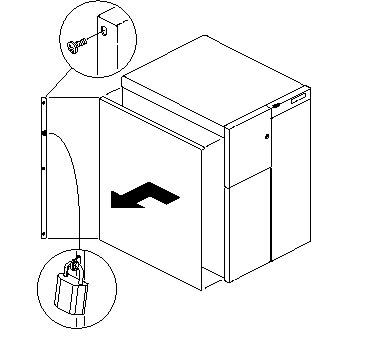

Cover (Side)
Attention
For proper cooling and airflow, always replace the side covers before powering-on the system.
The procedure for both side covers are the same.

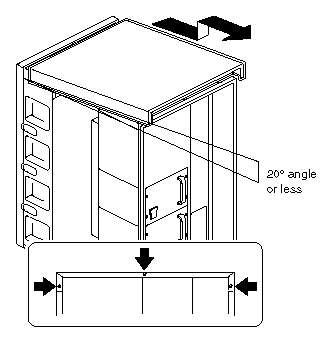

Cover (Top)
Attention
You must remove both side covers before you can remove the top cover.
|
