Service Hints & Tips

Document ID: GSMH-3EQD97

TP 365X/XD - 1050 Hard Disk Drive

Applicable to: World-Wide

1050 Hard Disk Drive:
Battery Pack (1020)
Lift Insulator Sheet (1025)

Warning: Do not drop or apply any shock to the hard disk drive. The hard disk drive is sensitive to physical shock. Incorrect handling can cause damage and permanent loss of data on the hard disk. Before removing the hard disk drive, have the user make a backup copy of all the information on the hard disk. Never remove the hard disk drive while the system is operating or is in suspend mode.

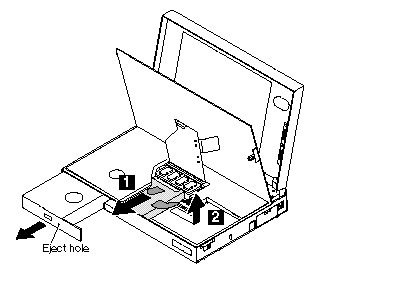

Notes: 1. Before removing the hard disk drive, eject the CD-ROM tray by by inserting a pin into the mechanical eject hole on the front of the CD-ROM drive. Pull the tray out fully. Otherwise, the CD-ROM drive may be damaged when you remove the hard disk drive. 2. Remove the hard disk drive exactly as shown in the figure. Do not apply any extra force to the hard disk drive when removing it. 3. This procedure is the same for Model 365X and Model 365XD.

	Search Keywords
	Hint Category	Hard Drives, Hardware Maintenance Information
	Date Created	28-02-97
	Last Updated	19-11-98
	Revision Date	10-11-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad 365X/XD
	Machine Type	2625
	Model	Various
