Service Hints & Tips |
Document ID: DETR-42RKUH |
Aptiva - 2158/2163 Removals and replacements - Bay panels
Applicable to: World-Wide
If you remove a drive from a bay and you do not intend to install a new drive immediately, reinstall the bay panel on the empty exposed drive bay. Follow these steps to remove the plastic bay panel from the front of the system unit cover.

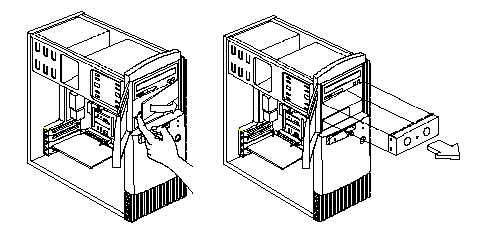

Hold a bay panel and press either side to unlatch it from the front of the system unit cover.
Pull the bay panel and EMI bay cover out.
NOTE: Replace the EMI Bay Panel
Replace the EMI bay cover.
Insert a bay panel into the opening at the front of the system cover, aligning the panel latches with the sides of the unit.
Push the panel back until you hear the latches click into place.
|
