Service Hints & Tips |
Document ID: GSMH-3E8KE2 |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
PCServer330 - Power Supply Voltages
Applicable to: World-Wide
Power Supply Voltages:
If the voltages are correct and the power supply fan runs, the power supply is OK.

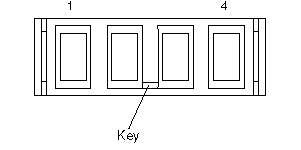

Connector P1:
|
- Lead Pin |
+Lead Pin |
V dc Minimum |
V dc Maximum |
|
3 |
1 |
+ 4.8 |
+ 5.25 |
|
4 |
2 |
+ 4.8 |
+ 5.25 |
Connector P2:
|
- Lead Pin |
+Lead Pin |
V dc Minimum |
V dc Maximum |
|
3 |
1 |
+ 3.3 |
+ 3.46 |
|
4 |
2 |
+ 3.3 |
+ 3.46 |
Connector P3:
|
- Lead Pin |
+Lead Pin |
V dc Minimum |
V dc Maximum |
|
2 |
4 |
+ 11.52 |
+ 12.6 |
|
2 |
5 |
+ 11.52 |
+ 12.6 |
|
2 |
8 |
- 10.8 |
- 13.2 |
|
2 |
10 |
+ 4.8 |
+ 5.25 |
|
2 |
11 |
- 4.5 |
- 5.5 |
|
- Lead Pin |
+Lead Pin |
V dc Minimum |
V dc Maximum |
|
C |
A |
+ 4.8 |
+ 5.25 |
|
B |
D |
+ 11.52 |
+ 12.6 |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information, Power | |
|
Date Created |
12-02-97 | |
|
Last Updated |
01-05-98 | |
|
Revision Date |
28-04-99 | |
|
Brand |
IBM PC Server | |
|
Product Family |
PC Server 330 | |
|
Machine Type |
8640 | |
|
Model |
| |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
