Parts Information |
Document ID: JWOE-3KXQVA |
Aptiva - 2142 Media console FRU part number list
Applicable to: China, Hong Kong, Japan, Australia, Canada, United States, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Spain, Sweden, United Kingdom

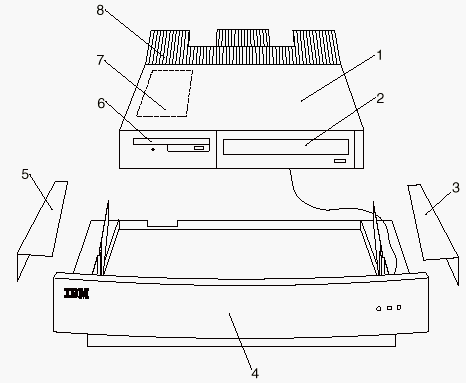

Assembly 6: Media Console (Type 2142)
|
Asm- |
FRU Part |
Units |
Description |
|
-1 |
00K8358 |
1 |
Media Console Top Cover |
|
-NS |
12J5928 |
1 |
Media Console Assembly -2 Mode/24X Max |
|
-NS |
12J5930 |
1 |
Media Console Assembly -2 Mode/DVD-ROM |
|
-NS |
12J5938 |
1 |
Media Console Assembly -(Japan) 3 Mode/24X Max |
|
-NS |
12J5940 |
1 |
Media Console Assembly -(Japan) 3 Mode/DVD-ROM |
|
-2 |
12J3525 |
1 |
CD-ROM Drive(24X Max) |
|
-2 |
02K1119 |
1 |
CD-ROM Drive(32X Max) |
|
-2 |
00K7888 |
1 |
DVD-ROM Drive |
|
-3 |
12J5941 |
1 |
Right Wing Cover |
|
-4 |
00K8357 |
1 |
Media Console Base |
|
-NS |
76H4738 |
1 |
On/Off Switch Assembly |
|
-5 |
12J5934 |
1 |
Left Wing Cover |
|
-NS |
76H4738 |
1 |
LED Assembly |
|
-6 |
75H9550 |
1 |
3.5-in. 1.44 MB 2 Mode Diskette Drive |
|
-6 |
75H9552 |
1 |
3.5-in. 1.44 MB 3 Mode Diskette Drive(Japan, Hong Kong, Korea and Taiwan) |
|
-6 |
76H6097 |
1 |
Zip Dive |
|
-7 |
12J5835 |
1 |
Client Card |
|
-8 |
12J5933 |
1 |
Media Console Rear Cover |
|
-NS |
12J5886 |
1 |
CD/DVD-ROM Audio Cable |
|
-NS |
12J5867 |
1 |
CD/DVD-ROM Power Cable |
|
-NS |
12J5785 |
1 |
Diskette Power Cable |
|
-NS |
12J5787 |
1 |
Diskette Signal Cable |
|
-NS |
00K8175 |
1 |
IDE Shielded Signal Cable |
|
-NS |
12J5791 |
1 |
LED Panel Cable |
|
-NS |
12J5783 |
1 |
Umbilical-3 Cable |
|
