Service Hints & Tips |
Document ID: LWIK-3PCLAE |
TP 560X - Diagnostic error codes
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Diagnostic Error Codes
If an error is detected, the following appears:
Large X on the left side of the device icon.
Device ID (three digits).
Error code (two digits).
FRU code (four digits).
The device ID and error code indicate the detailed portion of the FRU that caused the error. If replacing a FRU does
not correct the problem, see the device ID or error code from the previous failure. If they have changed, the cause
might be that the new FRU is detective or that the FRU was incorrectly installed.

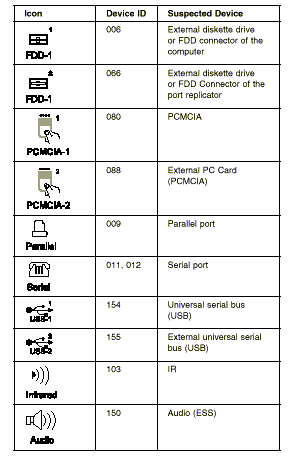

Device ID: If an error is detected by the diagnostic tests, a three-digit device ID is displayed, indicating the suspected device. Note: Only authorized servicers should replace parts.
|
