TP 560Z - 2040 LCD Cable and Hinges
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
DIMM (If Installed) (1020)
Battery Pack (1030)
Keyboard Bezel (1040)
Keyboard Unit (1050)
LCD Assembly (1060)
LCD Front Cover (2010)
LCD Panel (2020)

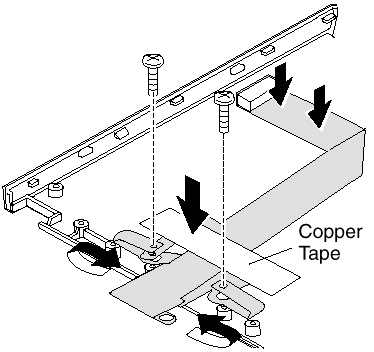

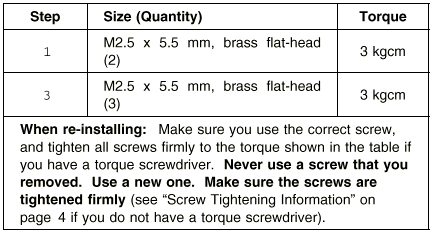

When re-installing:

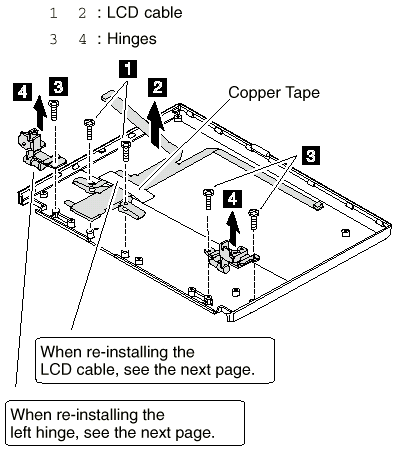

See the following figure:

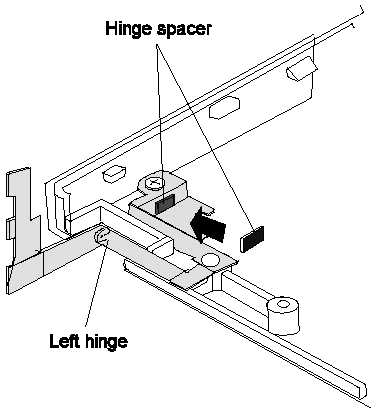

If you are replacing hinges of the TFT panel, put a spacer (P/N 05K4658) on the left hinge as shown below:
|
