Service Hints & Tips |
Document ID: GSMH-3GGEEZ |
Aptiva - 2161 Removals and replacements - Hard disk drives
Applicable to: World-Wide
2030 - Hard Disk Drives
Bay 5
Disconnect any cables on the drive.
Remove the screws.
Slide the hard disk drive to the rear and tilt to remove.
Remove the mounting bracket from the old drive and install the bracket on the replacement drive.

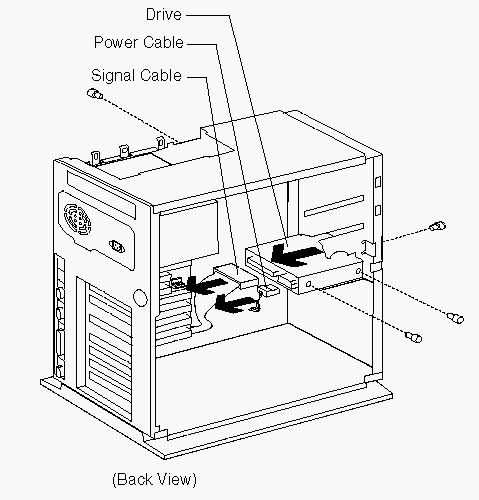

Figure 4-6. Hard Disk Drive - Bay 5

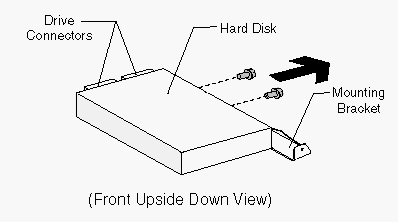

Figure 4-7. Mounting Bracket - Bay 5
Bay 6
Disconnect any cables on the drive.
Remove the screws.
Lift out the hard disk drive.

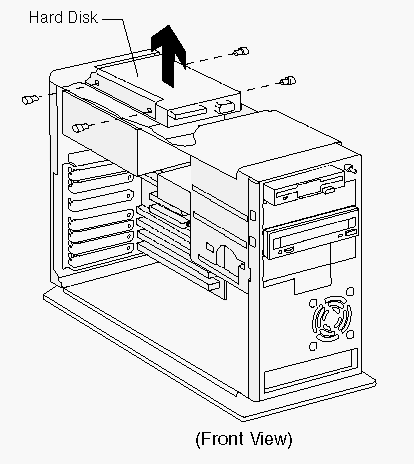

Figure 4-8. Hard Disk Drive - Bay 6
|
