IBM IntelliStation E Pro (Type 6893) - Parts diagram/FRU listing
Applicable to: World-Wide

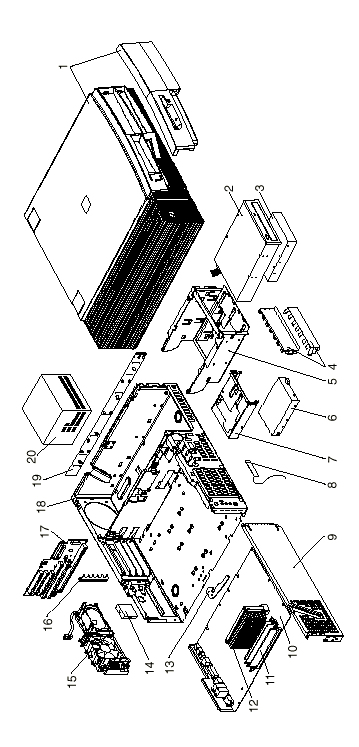

Parts Diagram:
Parts Listing:
|
Index |
System (Type 6893) |
FRU No. |
|
1 |
Cover Assembly |
02K2731 |
|
|
Name Plate and Bezels Kit |
03K9817 |
|
2 |
CD-ROM Drive (32X Max) |
02K1119 |
|
|
IDE Cable, CD-ROM (1-drop) |
03K9724 |
|
3 |
6.4 GB EIDE 7200rpm Hard Disk Drive |
10L6078 |
|
3 |
10.1 GB EIDE 7200rpm Hard Disk Drive |
10L6063 |
|
|
IDE Cable |
76H7341 |
|
3 |
4.5 GB SCSI 7200rpm Hard Disk Drive |
10L6084 |
|
3 |
9.1 GB SCSI 7200rpm Hard Disk Drive |
10L6085 |
|
|
SCSI Adapter Card - Adaptec |
10L7095 |
|
|
SCSI Data Cable |
76H7343 |
|
|
SCSI LED Cable |
76H7344 |
|
4 |
EMC Shields 5.25-inch |
76H7338 |
|
5 |
Hard Disk/CD-ROM Cage |
03K9641 |
|
6 |
1.44 MB 3.5-Inch Diskette Drive |
75H9550 |
|
6 |
1.44 MB 3.5-Inch Diskette Drive-Japan |
75H9552 |
|
|
Diskette Drive Cable |
76H7340 |
|
7 |
3.5-Inch Diskette Bracket |
76H7330 |
|
8 |
RFID Antenna |
03K9769 |
|
9 |
Side Bracket |
76H7329 |
|
10 |
System Board (no processor, memory, rails) |
11L1619 |
|
10 |
System Board (no processor, memory, rails, video) |
11L1622 |
|
|
System Board Guide Rails, center and front |
03K9626 |
|
11 |
Memory - 64 MB DIMM, EDO ECC |
01K1140 |
|
11 |
Memory - 128 MB DIMM, EDO ECC |
01K1141 |
|
12 |
Processor Pentium II 350 MHz |
01K4333 |
|
12 |
Processor Pentium II 400 MHz |
01K4334 |
|
12 |
Processor Pentium II 450 MHz |
01K1578 |
|
13 |
Latch and Screw |
01K1612 |
|
14 |
Card Blank Bracket (AGP Cover) |
03K9623 |
|
15 |
Fan/Speaker/Power Switch Assembly |
76H7332 |
|
16 |
I/O Bracket |
03K9622 |
|
17 |
Riser Card |
11L1566 |
|
|
Riser Clips, front and rear |
02K2766 |
|
18 |
Chassis Assembly |
03K9818 |
|
19 |
Side Panel |
02K2728 |
|
20 |
145 Watt Power Supply |
01K9846 |
|
20 |
145 Watt Power Supply - Japan |
01K9848 |
|
|
Cable, Wake On Ring |
76H7345 |
|
|
Foot (4) |
93F2386 |
|
|
Jumper Kit |
93F0067 |
|
|
Keylock Assembly |
03K9624 |
|
|
Lithium Battery |
33F8354 |
|
|
Matrox Eclipse Video Card |
01K4422 |
|
|
Matrox Millenium Video Card |
01K4340 |
|
|
Misc. Screw Kit |
93F0041 |
|
|
Permedia 2A Video Card |
28L4968 |
|
