Service Hints & Tips

Document ID: GCOR-38ZKXW

Aptiva - 2134/2176/2159 System board layout & locations (Type A-2)

Applicable to: World-Wide

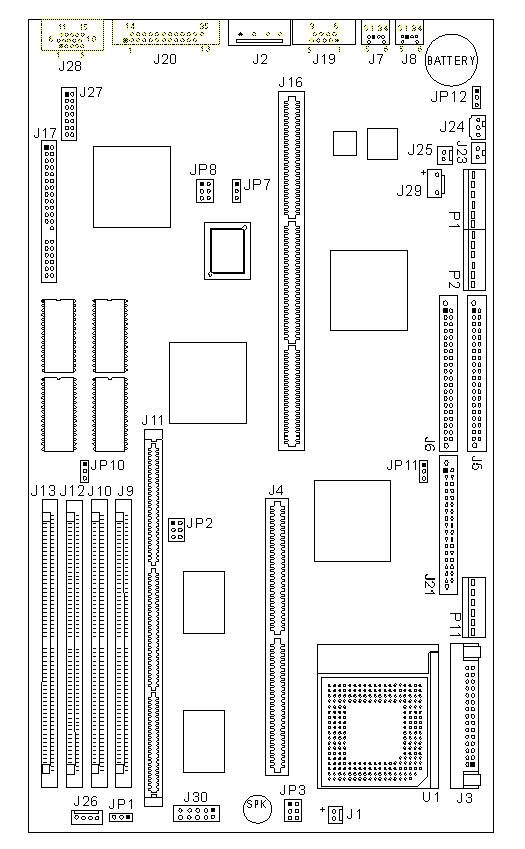

Figure 1-4. System Board Type A-2:

System Board Locations - Type A-2
J1 Fan +12 V dc connector
J2 USB (Universal Serial Bus)
J3 System board voltage regulator connector
J4 Cache connector
J5 Primary Hard Disk IDE (Hard Disk 1, Hard Disk 2)
J6 Secondary Hard Disk IDE (Hard Disk 3 or CD-ROM, Hard Disk 4)
J7 Mouse connector
J8 Keyboard connector
J9 SIMM 72-pin Socket - Bank 1
J10 SIMM 72-pin Socket - Bank 2
J11 DIMM 168-pin Socket - Bank 2
J12 SIMM 72-pin Socket - Bank 3
J13 SIMM 72-pin Socket - Bank 4
J16 Riser Connector¬PCI/ISA
J17 VESA Video feature connector
J19 Serial Port A connector
J20 Parallel Port connector
J21 Diskette drive connector
J23 Power Supply 2-pin connector (On/off switch)
J24 Power Supply 3-pin connector
J25 Wake Up On Ring connector
J26 HDD/Power LED connector (Power: 1-2, HDD: 3-4)
J27 Internal VGA connector
J28 Monitor signal connector
J29 External speaker power connector
J30 Media console connector
JP1 External speaker (Enable: 1-2, Disable: open)
JP2 System board bus clock
JP3 Processor bus factor (see Figure 1-6 on)
JP7 System board flash jumper (Normal: 1-2, write protect: 2-3)
JP8 Video interrupt
JP10 VGA (Enable: 1-2, Disable: 2-3)
JP11 Diskette Drive (FDD) write enable (Enable: 1-2, Disable: open)
JP12 CMOS, Power-on Password Reset (Normal: 1-2, Clear: 2-3)
P1,P2 Power supply connector
P11 3.3 V dc Power supply connector
U3 Processor

Search Keywords

Hint Category

System Boards, Hardware Installation/Configuration, Jumper/Switch Settings

Date Created

27-08-96

Last Updated

15-03-99

Revision Date

15-03-2000

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2134, 2159, 2176

Model

13R; 14R; 15R; 16R; 17R; 18R; 19R; 20R; B60; B65; B75; B80; B85; B95; S64; S66; S74; S76; S78; S7H; S80; S90; J51; J52; K31; K32; K52; L31; L32; L52; L6T; P31; P32; P52; 382; 384; 392; 6R8; 7R0; 7R1; 7R2; 7R3; 7R6; 7R7; 7R9; 8R1; 8R8 ; 9R1; 9R2; 9R3; C23; C33; C35; C3X; C55; C5X; C65; C66; C67; C6V; C6X; C6Y; C6Z; C73; C77; C7X; F23; F33; F35; F67; H54; H55; H56; H5E; H5F; H64; H65; H6D; H6E; H6F; H7E; H7F; H7G; K53; J62; K74; L53; L62; P53; P62; T33; T62; T65; T71; V65; V71; W55; W65; X33; X52; X62; X65; X71; Y33; Y52; Y62; Y65; Y71; Z33; Z52; Z62; Z65; Z71
