Parts Information

Document ID: DDSE-433LGS

Netfinity 5000 - Hot Swap Backplane Assembly

Applicable to: World-Wide

Hot Swap Backplane Assembly Removal

Before you begin - Read Safety Information. - Turn off the server, if it is on.

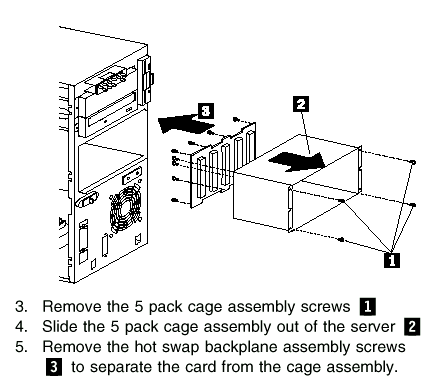

To remove the hot swap backplane assembly, do the following:
1. Remove the side cover and front bezel, see Option Installation.

2. Disconnect the cables attached the hot swap backplane assembly.

	Search Keywords
	Document Category	Backplane
	Date Created	11-12-98
	Last Updated	11-12-98
	Revision Date	11-12-99
	Brand	IBM PC Server
	Product Family	Netfinity 5000
	Machine Type	8659
	Model	ALL
