Document ID: DLEE-44ZKWK |

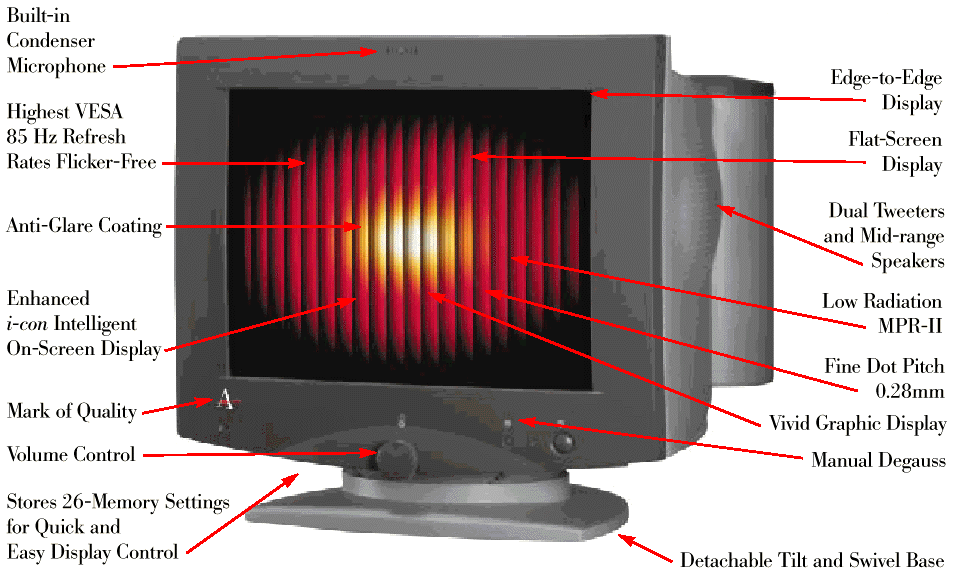

Ambra 17" Monitor (Type 6700-BMS) - Technical Specifications
Applicable to: Canada
|
Model |
17" Monitor |
|
Part number |
6700-BMS |
|
Warranty |
1 year Express Exchange |
|
Announcement Letter |
U97-0010 |
|
Announce/Availability Date |
98-Mar-13 |
|
Withdrawal Date | |
|
CRT Technology |
Shadow Mask |
|
Colour |
Black |
|
CRT Size |
17" |
|
Viewable Size |
15.8" (401mm) |
|
Dot Pitch |
0.28mm |
|
Horizontal Scan Frequency |
30-70 KHz |
|
Vertical Scan Frequency |
50-120 Hz |
|
Bandwidth |
100 MHz |
|
VESA Refresh / Max. Refresh |
Full-Screen |
|
640 x 480 |
85 Hz / 120 Hz |
|
800 x 600 |
85 Hz / 108 Hz |
|
1024 x 768 |
85 Hz / 86 Hz |
|
1280 x 1024 |
60 Hz / 65 Hz |
|
Total Speaker System Output |
22 Watts RMS |
|
Sub-woofer |
4 inch / 14 Watts |
|
Mid Range |
3 inch / 6 Watts |
|
Tweeter |
1 inch / 2 Watts |
|
Built-in Microphone |
Condenser Type |
|
Earphone Output |
6.6mW / CH |
|
Spatializer 3-D Audio |
High / Low / Off |
|
On-Screen Display Control |
Yes |
|
Brightness / Contrast |
Yes / Yes |
|
V-Size / H-Size |
Yes / Yes |
|
V-Position / H-Position |
Yes / Yes |
|
Pincushion / Parallelogram |
Yes / Yes |
|
Trapezoid / Corner |
Yes / Yes |
|
Bow / Tilt |
Yes / Yes |
|
9300› K Colour Temperature |
Yes |
|
6550› K Colour Temperature |
Yes |
|
User Defined R/G/B Colours |
Yes |
|
Volume / Treble / Bass |
Yes / Yes / Yes |
|
3-D Effect |
Yes |
|
Manual Degauss |
Yes |
|
Audio Muting |
Yes |
|
Low Radiation MPR-II |
Yes |
|
VESA DDC 1/2B Plug & Play |
Yes |
|
VESA DPMS/EPA EnergyStar |
Yes / Yes |
|
Safety Standards UL/FCC/CE |
Yes / Yes / Yes |
|
Weight |
20 Kg |
|
Height x Width x Depth (mm) |
418 x 421 x 431 |
|
Max. View Area |
- |
|
Power Consumption |
--- Watts |
|
Operating Temperature (›C) |
Low -; High - |
|
Relative Humidity (%) |
Low -.-; High -.- |
