Service Hints & Tips |
Document ID: MNOK-3UUQC7 |
Aptiva - 2161 - How to connect CD-ROM audio cable
Applicable to: World-Wide

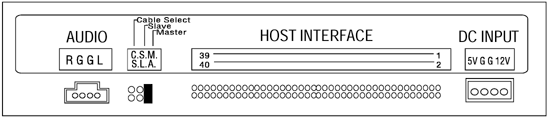

Locate the four pin audio cable connection on the back of the CD-ROM drive, this is normally labeled AUDIO or CD-AUDIO, and connect one end of the audio cable.

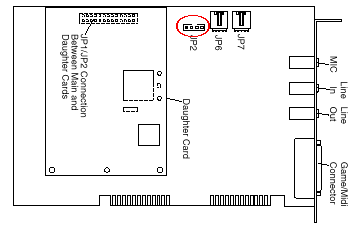

On the sound card locate socket JP2, circled in red below, and connect the other end of the audio cable.
|
Search Keywords |
| |
|
Hint Category |
Audio, CD-ROM Drives, Hardware Installation/Configuration, Cables | |
|
Date Created |
26-05-98 | |
|
Last Updated |
11-01-99 | |
|
Revision Date |
11-01-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2161 | |
|
Model |
21R; 22R; 24R; 25R; 38R; 460; 461; 462; 471; C3D; C3E; C85; C8E; C8F; C8H; C8M; C8X; C9E; C9F; C9S; C9X; D34; D64; D84; E34 E64; E84; F34; F64; F84; G66; G76; H66; H76; J66; J76; L81; L91; M81; M91; N63; N64; N74; N81; N91; T71; T81; T84; T85; T8B; T8C; T8E; T8F; T94; T95; T9D; T9E; TAE; TAF | |
|
