Service Hints & Tips |
Document ID: GSMH-3FGJD9 |
IBM PC330/PC350 - (Type 65x6) Pentium 75/90/100 MHz system board
Applicable to: World-Wide
PC 330/350 Series (Type 65X6) - Pentium 75/90/100 MHz System Board:
This system board is for models 3XX, 4XX, 5XX.
See ¿PC 330/350 Series (Type 65X6) - Pentium 133/166 MHz System Board— for 6XX, 7XX, 8XX, and 9XX models.

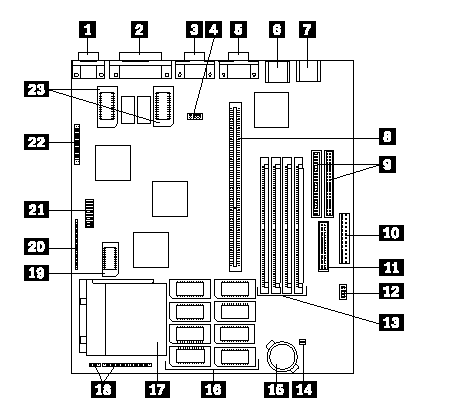

PC 330/350 Series (Type 65X6) - Pentium 75/90/100 MHz System Board Locations:
|
1 |
Video display connector |
|
2 |
Parallel port connector |
|
3 |
Serial port connector |
|
4 - J5J1 |
BIOS Flash jumper |
|
5 |
Serial port connector |
|
6 |
Mouse port connector |
|
7 |
Keyboard connector |
|
8 |
PCI/ISA Riser connector |
|
9 |
Primary (outer) IDE connectors |
|
9 |
Secondary (inner) IDE connectors |
|
10 |
Power connector |
|
11 - J9D1 |
Diskette drive connector |
|
12 - J9C1 |
Processor VRE Enable |
|
13 |
Memory module connectors |
|
14 |
CPU 3.3V voltage regulator |
|
15 |
RTC Battery |
|
16 |
512 KB Cache memory connectors |
|
17 |
Processor connector |
|
18 - J2A2 |
Front panel I/O connector |
|
19 |
Cache Tag memory connector |
|
20 - J1D1 |
Front panel I/O connector |
|
21 - SW1 |
Configuration switch block |
|
22 |
VESA connector |
|
23 |
2MB Video memory connectors |
See ¿PC 330/350 Series (Type 65X6) - Pentium 75/90/100 MHz Jumper Settings— for jumper and switch settings.
PC 330/350 Series (Type 65X6) - Pentium 75/90/100 MHz Jumper Settings:
The following tables contain the jumper and switch setting information. (D) indicates the default setting.
L2 Cache Size - SW1 Switch 1, 2:
|
L2 Cache Size |
Switch1 |
Switch2 |
|
0 KB |
On |
N/A |
|
256 KB |
Off |
Off |
|
512 KB |
Off |
On |
CMOS Setup Utility - SW1 Switch 3, 4, 5:
|
Description |
Switch3 |
Switch4 |
Switch5 |
|
Power-on Password Enabled |
Off (D) |
Off |
Off |
|
Power-on Password Reset |
On (D) |
Off |
Off |
|
Normal CMOS Settings |
Off |
Off (D) |
Off |
|
Reset CMOS Settings |
Off |
On |
Off |
Processor Type - SW1 Switch 6, 7, 8:
|
Processor |
Switch6 |
Switch7 |
Switch8 |
|
50/75 MHz |
Off |
Off |
Off |
|
60/90 MHz |
Off |
On |
Off |
|
66/100 MHz |
Off |
Off |
On |
|
Reserved |
Off |
N/A |
N/A |
BIOS Flash Reset - J5J1:
|
Jumper |
Position |
Description |
|
J5J1 |
1-3 |
Normal (D) |
|
J5J1 |
1-2 |
Reset |
ISA Bus Clock Speed Jumper - J5J1:
|
CPU External |
ISA 1/6 Clock Speed |
ISA 1/8 Clock Speed |
|
50/75 MHz |
8.33 MHz (D) |
6.25 MHz |
|
60/90 MHz |
10 MHz |
7.5 MHz (D) |
|
66/100 MHz |
11 MHz |
8.25 MHz |
|
Note: |
Processor VRE Enable - J9C1:
|
Jumper |
Description |
|
J9C1 1-3 (D) |
Standard Voltage Processor |
|
J9C1 5-7 |
VRE Rated Processor |
|
