Aptiva - How to tighten CD-ROM drive screws

80.117 bytes

Service Hints & Tips

Document ID: MNOK-3T5TBR

Aptiva - How to tighten CD-ROM drive screws

Applicable to: World-Wide

First, remove the cover on your Aptiva according to the documentation included with it.
For systems with no media console:

Locate the screws on the side of the CD-ROM drive and use a screwdriver to tighten them.

For 2159 and 2162 systems:

The media console is not considered user-serviceable. However, the end-user can remove and reseat the media console cable at the tower and the media console host card inside the tower. It is recommended to replace the media console or to take the system to an IBM servicer for CD-ROM service.

For 2142 systems:

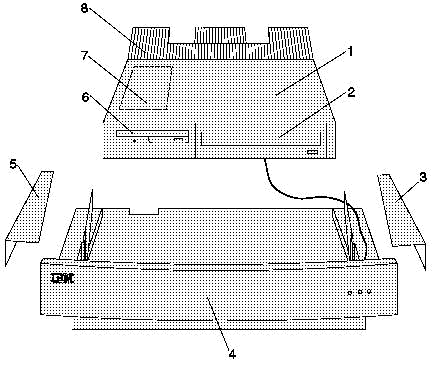

Media Console Assembly, Type 2142:

1. Media Console Top Cover & Console Assembly

2. CD-ROM or DVD-ROM Drive

3. Right Wing Cover

4. Media Console Base

5. Left Wing Cover

6. 3.5-in. 1.44 MB Diskette Drive

7. Client Card including On/Off switch (internal)

8. Media Console Rear Cover

1. With system turned off, remove the Media Console Rear-Cover (#8) by pushing down on cover with both thumbs and pushing cover to the rear.

2. Remove the Right and Left Wing Covers (#3 & 5) by pulling covers away from the side of the case.

3. Lift the Console Assembly straight up from the front and then pull it out of the hinge assembly. In order to gain access to the cable connectors in the Media Console Base (4), set the Console Assembly back down, slightly toward the front of the Media Console Base.

4. Squeeze the two end clips inward on the ribbon cables to the CD-ROM drive and to the Floppy drive and pull the cable connections upward to remove. It helps to alternate pulling on each side of the connector until it is removed.

5. Remove the two white power connector cables at the center. There is a clip on the back of each socket that holds the connector. If you place your thumbnail or similar tool in from the top and pull slightly to the rear, it will release the clip so that the connector may be pulled out with your other hand. Also, just to the left of the center of the Media Console Base, remove the CD-ROM audio cable by pulling up on the small white connector.

6. The Console Assembly should now be separated from its base. At the rear of the CD-ROM drive, grasp both sides of the blue ribbon cable and work it out of its socket. This will give you access to the white power connector. Grasp it at the sides and work it out of its socket. Inspect them for physical damage.

7. Locate the screws on the side of the CD-ROM drive and use a screwdriver to tighten them. Replace white power connector cable and blue ribbon cable connector into their sockets. Ensure both cables are seated securely.

8. Reseat the two blue ribbon cables, the two white power cables, and the CD-ROM audio cables into their respective sockets on the Media Console Base. Ensure the cables are seated securely.

9. Set Media Console Assembly into hinge sockets from a vertical position. Close Media Console Assembly.

10. Slide the Wing Covers from back to front into their slots. Slide the Rear Cover from back to front into its slots to complete the assembly process.
