IBM PC300PL (Type 6592) - Parts diagram/FRU listing
Applicable to: World-Wide

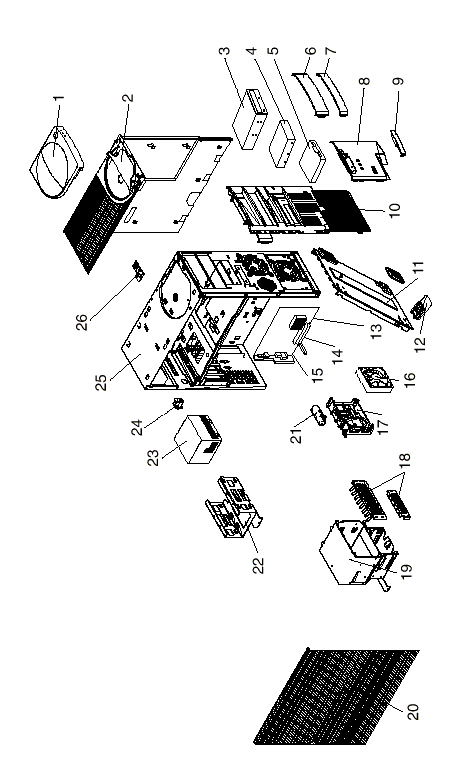

Type 6592 Parts Diagram:
Parts listing
|
Index |
System (Type 6592) |
FRU No. |
|
1 |
Handle Cover |
12J4494 |
|
2 |
Top Cover Assembly |
12J4509 |
|
3 |
CD-ROM (24X Max) |
12J3521 |
|
CD-ROM Audio Cable |
75H9219 | |
|
4 |
2.5 GB EIDE Hard Disk Drive |
76H5822 |
|
4 |
4.2 GB EIDE Hard Disk Drive |
12J4574 |
|
Hard Disk Cable, EIDE |
12J4518 | |
|
4 |
2.1 GB SCSI Hard Disk Drive |
00K7913 |
|
4 |
4.3 GB SCSI Hard Disk Drive |
00K7909 |
|
SCSI Adapter Card - Adaptec |
12J3094 | |
|
SCSI Data Cable |
12J4513 | |
|
SCSI LED Cable |
76H7344 | |
|
5 |
3.5-Inch 1.44 MB Diskette Drive |
75H9550 |
|
5 |
3.5-Inch 1.44 MB Diskette Drive-Japan |
75H9552 |
|
Diskette Drive Cable |
76H7340 | |
|
6 |
Miscellaneous Blank Bezel |
12J4497 |
|
7 |
Miscellaneous Optional Bezel |
12J4498 |
|
8 |
3.5-inch Bezel Assembly |
12J4496 |
|
9 |
Model Plate |
12J4499 |
|
10 |
Front Bezel |
12J4495 |
|
11 |
Bottom panel |
12J4504 |
|
12 |
Foot (4) |
12J4506 |
|
13 |
Processor Pentium MMX 166 MHz |
76H7119 |
|
13 |
Processor Pentium MMX 200 MHz |
76H5509 |
|
13 |
Processor Pentium MMX 233 MHz |
02K2768 |
|
14 |
Memory - 16 MB DIMM, Non-Parity |
01K1116 |
|
14 |
Memory - 32 MB DIMM, Non-Parity |
01K1117 |
|
14 |
Memory - 16 MB DIMM, EDO ECC |
01K1120 |
|
14 |
Memory - 32 MB DIMM, EDO ECC |
01K1121 |
|
15 |
System Board (no processor, memory) |
07L7353 |
|
Lithium Battery |
33F8354 | |
|
Riser Card |
93H7192 | |
|
Riser Card Support |
76H7334 | |
|
Cable - Wake On Ring |
76H7345 | |
|
16 |
92 mm Fan Assembly |
12J5536 |
|
17 |
Speaker, C2, Card Guide Assembly |
12J4507 |
|
18 |
EMC Kit |
12J4508 |
|
19 |
DASD Bracket 3.5-inch/5.25-inch |
12J4501 |
|
20 |
Access Cover Assembly |
12J4493 |
|
21 |
Audio, front Panel |
12J4514 |
|
22 |
3.5-inch Drive Bracket |
12J4502 |
|
23 |
Power Supply (200W) |
75H8991 |
|
23 |
Power Supply (200W) - Japan |
76H4873 |
|
24 |
Keylock Assembly |
12J5102 |
|
25 |
Base Frame Assembly |
12J4500 |
|
Planar Side Guide Rail |
76H7335 | |
|
Miscellaneous Hardware Kit |
12J4503 | |
|
Miscellaneous Screw Kit |
93F0041 | |
|
Jumper Kit |
93F0067 | |
|
26 |
Power Switch/LED Cable Assembly |
12J4510 |
|
