Service Hints & Tips |
Document ID: LWIK-3T6JFU |
TP 600 - Creating the device driver diskettes
Applicable to: United States, Canada
To create the device driver diskettes for your ThinkPad 600 for Windows 95 or Windows NT follow these instructions.
1. Click on Start, Programs, ThinkPad 600, and then Diskette Factory.

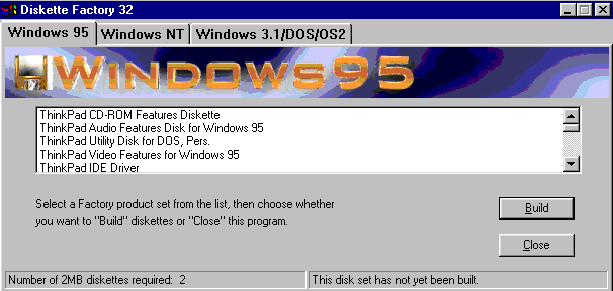

2. At the Diskette Factory 32 window, select the the Operating System you want to create the device driver diskettes for, then highlight the diskette image you want to create and click on Build.
Note:
The drivers are also available from diskette factory on the Thinkpad Customization CD.
To access diskette factory from the Customization CD:
1. Run SYSMGR.EXE (The Thinkpad Customization Center) from the CD
(Note: if AutoRun is enabled this application will start automatically when the CD is inserted.
2. Select Thinkpad RTC Installer
3. Select Run Diskette Factory.
The tables below list the diskettes you can create for each operating system.
Windows 95 Device Drivers
|
Driver Name |
# of disks |
|
ThinkPad CD-ROM Features Diskette |
1 |
|
ThinkPad Audio Features Diskette for Windows 95 |
1 |
|
ThinkPad Utility Disk for DOS, Pers. |
1 |
|
ThinkPad Video Features Diskette for Windows 95 |
1 |
|
ThinkPad IDE Driver |
1 |
|
IBM ThinkPad Modem for Windows 95 |
5 |
|
ThinkPad CardWorks for Windows 95 |
2 |
|
SelectaDock I/II Diagnostic Diskette |
1 |
|
TrackPoint4 Device Driver for Windows 95/NT |
1 |
|
ThinkPad Utility Disk for Windows 95 |
1 |
|
ThinkPad Utility Data Disk |
1 |
|
Windows 95 Supplement File Diskette Version 1.00 |
1 |
|
ConfigSafe for Windows 95 |
1 |
|
IBM AntiVirus for Windows (R) 95 |
2 |
|
IBM Internet Connection |
3 |
|
Intelliquest - IBM Registration |
2 |
|
Total number of diskettes: |
25 |
Windows NT Device Drivers
|
Driver Name |
# of disks |
|
ThinkPad Audio Features Disk for Windows NT 4.0 |
1 |
|
ThinkPad Video Features for Windows NT 4.0 |
1 |
|
ThinkPad IDE Driver |
1 |
|
ThinkPad Infrared Features for Windows NT |
1 |
|
IBM ThinkPad Modem for Windows NT 3.51/4.0 |
2 |
|
ThinkPad CardWizard for Windows NT 4.0 |
1 |
|
SelectaDock I/II Diagnostic Diskette |
1 |
|
TrackPoint4 Device Driver for Windows 95/Windows NT |
1 |
|
ThinkPad Utility Disk for Windows NT 3.51/4.0 |
1 |
|
ThinkPad Utility Data Disk |
1 |
|
Total number of diskettes: |
11 |
Windows 3.1/DOS/OS2
The OS/2 and DOS/Windows 3.11 drivers are not available through diskette factory. You can download them from the Internet by clicking here.
|
