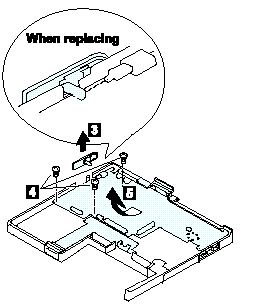

TP 560X - 1100 System Board
Applicable to: World-Wide
1100 System Board
DIMM (If Installed) (1020)
Battery Pack (1030)
Frame (1040)
Keyboard Unit (1050)
LCD Assembly (1060)
Speaker (1070)
Hard Disk Drive (1080)
PC Card Slot Assembly (1090)
Notes:
1. The system unit serial number must be restored when the system board is replaced. Select the option Set system identification on the maintenance diskette. The flash ROM on the system board contains the vital product data (VPD) that is,
the system unit serial number, system board system number, and other computer-unique data.
2. Do not power off the computer when restoring the VPD. The system unit serial number label is attached to the base cover.
|
Step |
Screw No.(See page 59) |
Qty |
Torque |
|
1 |
5 |
6 |
3 kgcm |
|
2 |
6 |
2 |
2 kgcm |
Note:
When replacing: Make sure you use the correct screw, and tighten all screws firmly to the torque shown in the table if you have a torque screwdriver. Never use a screw that you removed. Use a new one. Make sure the screws are tightened firmly
(see Screw Tightening Information on page 22 if you do not have a torque screwdriver).
|
Step |
Screw No.(See page 59) |
Qty |
Torque |
|
4 |
3 |
3 |
4 kgcm |
Note:
When replacing: Make sure you use the correct screw, and tighten all screws firmly to the torque shown in the table if you have a torque screwdriver. Never use a screw that you removed. Use a new one. Make sure the screws are tightened firmly
(see Screw Tightening Information on page 22 if you do not have a torque screwdriver).
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
04-11-97 | |
|
Last Updated |
07-04-98 | |
|
Revision Date |
16-03-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560X | |
|
Machine Type |
2640 | |
|
Model |
Various | |
|
TypeModel |
| |
|
