Service Hints & Tips |
Document ID: RJJR-3PCKLM |
TP 770 - 1080 Eject lever and power switch
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

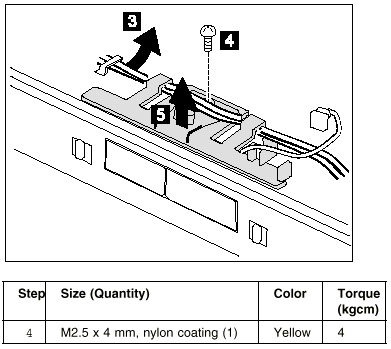

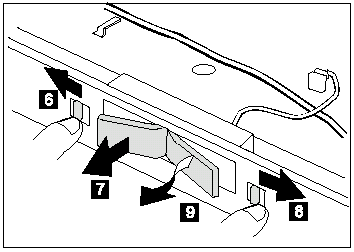

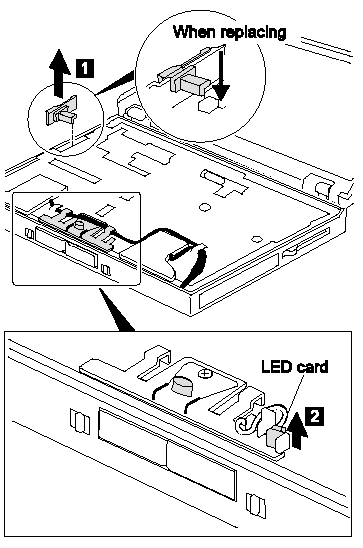

1080 Power Switch and Bay Eject Lever
Battery Pack (1010)
UltraBay II Device or Second Battery Pack (1020)
Keyboard Assembly (1060)

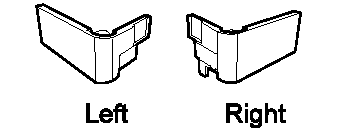

1. Make sure which is the right and the left bay eject lever; then replace the correct lever.

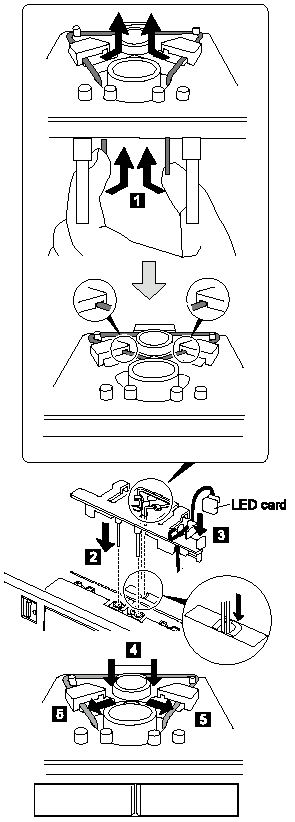

2. Follow the procedure shown in the figure. After replacing the bay eject lever assembly, make sure that both levers pop out.

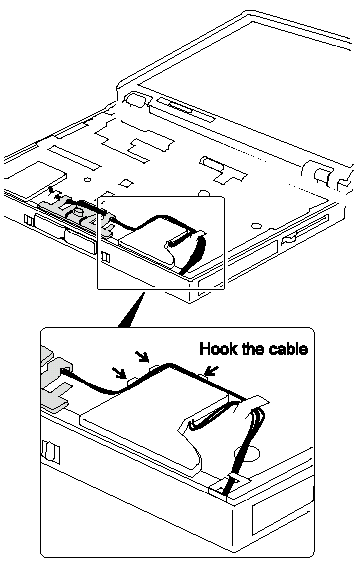

3. Refer to the following figure for the speaker cable route:
|
