PCServer330 - Bypassing An Unknown Power-on Password
Applicable to: World-Wide
Bypassing an Unknown Power-on Password:
When a power-on password is set, the POST does not complete until the password is entered. If the power-on password is forgotten, you can regain access to the server in either of the following ways:
Enter the administrator password at the power-on prompt. Start the Configuration/Setup utility programs and change the power-on password. See 'Using the Power-on Password Menu—.
Change the position of the power-on password jumper. When you restart the server, POST proceeds without prompting for the password for this startup only. Start the Configuration/Setup Utility programs and set a new power-on password.
1. Locate the power-on password jumper (J12). If necessary, see 'System Board—.

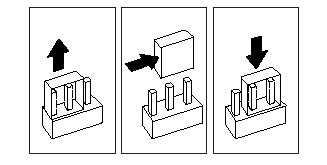

2. Change the jumper's position.
a. Lift the jumper straight off the pin block.
b. Align the holes in the bottom of the jumper with the center pin and the pin that was not covered previously.
c. Slide the jumper over these pins. POST will bypass the power-on password the next time the server is powered-on.
|
Note: |
3. Replace the server cover and reconnect all external cables and power cords.
4. Use the Configuration/Setup utility programs to set a new power-on password.
|
