Service Hints & Tips |
Document ID: GSMH-3BCLDW |
TP 355,360,370,750,755C/CS - Rear View
Applicable to: World-Wide

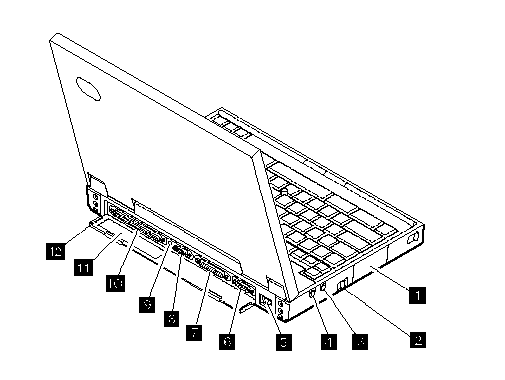

System Rear View - All Models:
1. Diskette Drive Cover
2. Power Switch
3. Microphone/Line-In Jack
4. Headphone Jack
Note:
Not all models have jacks 3 and 4.
5. Power Jack
6. Serial Connector
7. Parallel Connector
8. External Display Connector
9. Reset Push button
10. System Expansion Connector
Note:
Model 355x does not have this connector.
A multimedia portable expansion unit, port replicator, or port replicator with PCMCIA can be connected to this interface to support the following features.
- 16-bit AT-bus interface
- Serial port
- Parallel port
- Keyboard and mouse
- HDD connection
- LED control signals
- Visual signals
- Audio signals
- FDD signals
- PCMCIA signals
- Power controls
- Power line
11. Connector Door
12. Rear Door
|
