Aptiva - 2142 Removals and replacements - Media console

Applicable to: China, Hong Kong, Japan, Australia, Canada, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Spain, Sweden, United Kingdom, United States

Disconnect the cables from the back of the Media Console.
Remove the back cover.
Disconnect the two signal, two power, CD/DVD, and LED cables.
Pry off the left and right side wings.
Open the Media Console.
Remove the left and right side latch retainers.
Pry the left and right side latches and pull the console up to a vertical position.
Pull the console up to remove.
Remove the 13 bottom cover screws to remove console components.

When installing the console, be sure the console spring is installed and latched on the plastic retainer.

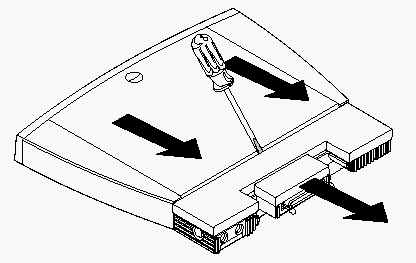

Console back cover removal

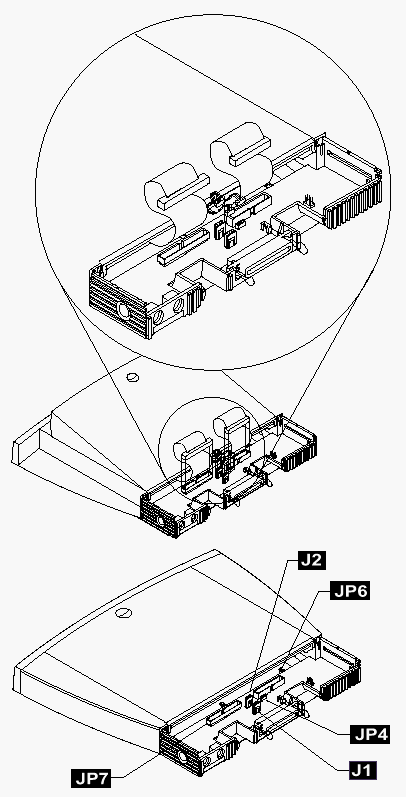

Console cable removal

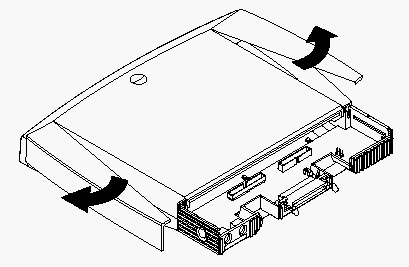

Console left and right side covers

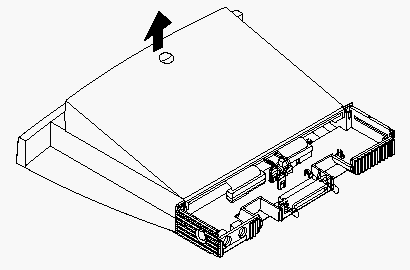

Opening the console

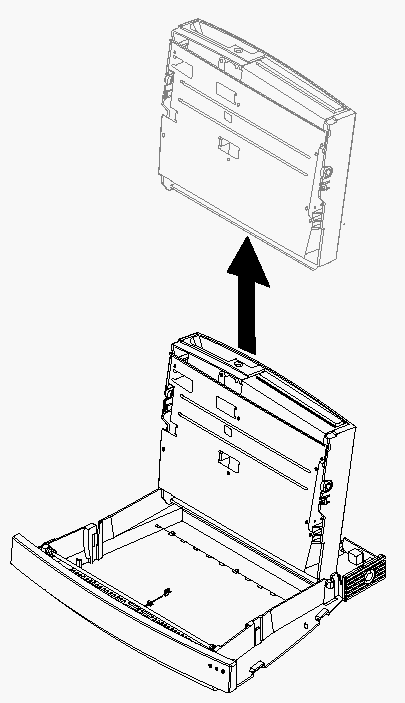

Removing the console

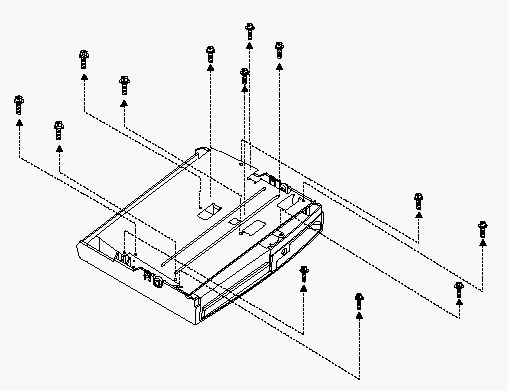

Removing the console bottom plate

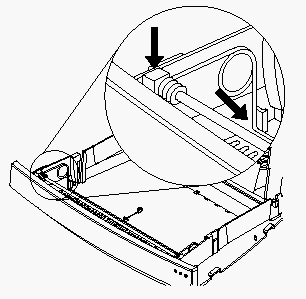

Console spring
