Service Hints & Tips |
Document ID: DETR-3WDHB9 |

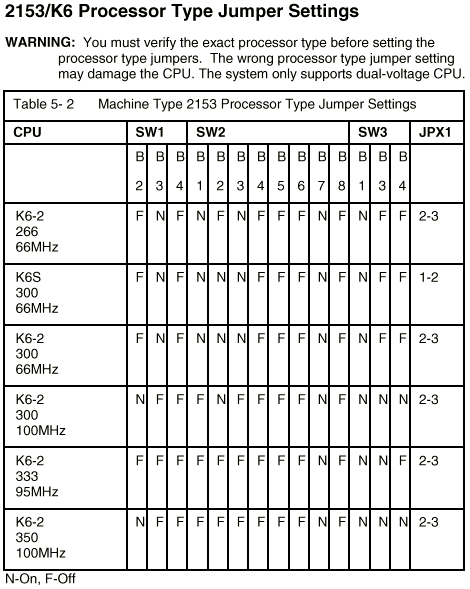

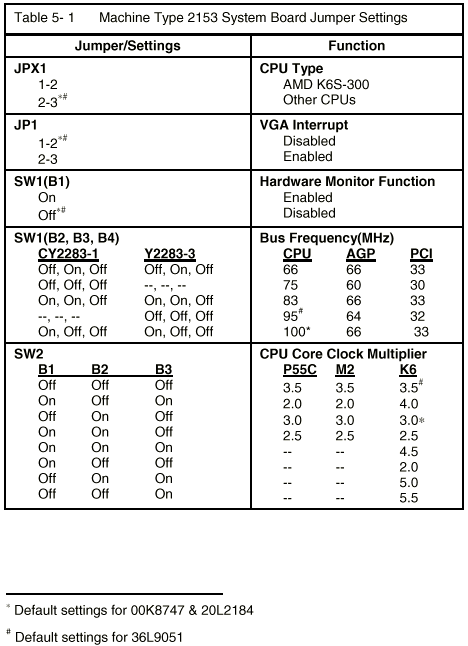

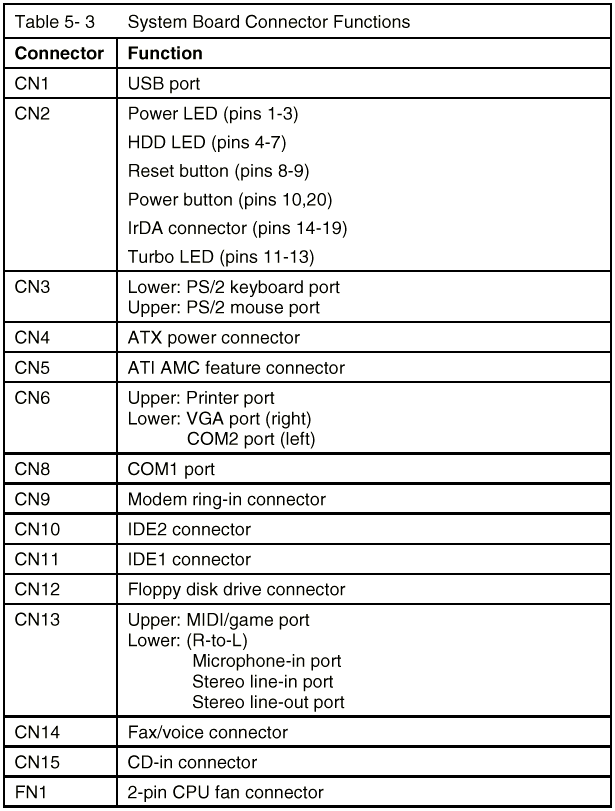

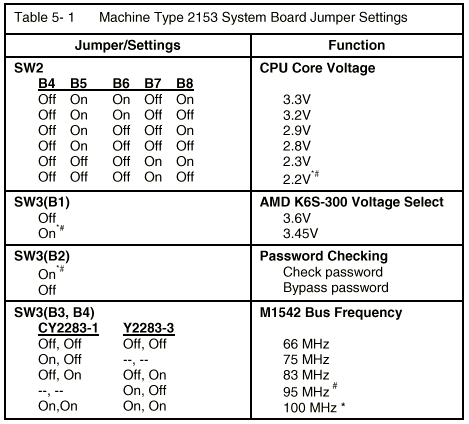

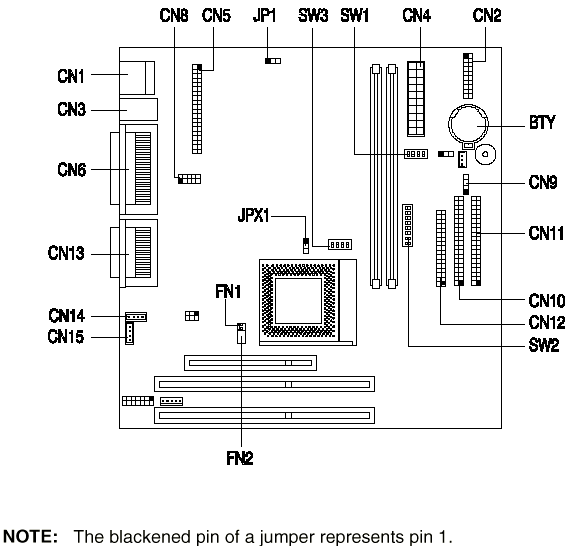

Aptiva - 2153 (K6) system board layout and jumper settings
Applicable to: World-Wide
|
Search Keywords |
| |
|
Document Category |
System Boards, Jumper/Switch Settings, Processors, Hardware Installation/Configuration | |
|
Date Created |
14-07-98 | |
|
Last Updated |
01-02-99 | |
|
Revision Date |
14-12-99 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2153 | |
|
Model |
all | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
