Service Hints & Tips

Document ID: DETR-3WDHRH

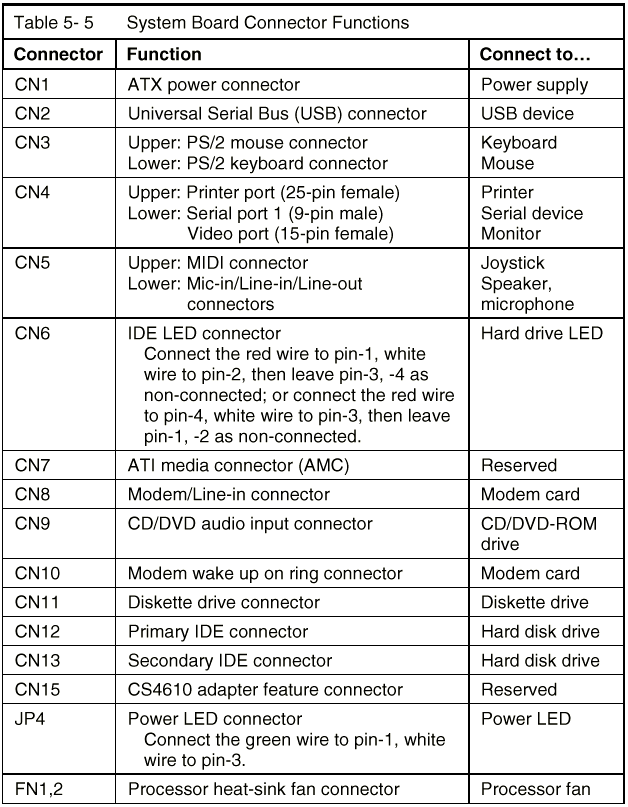

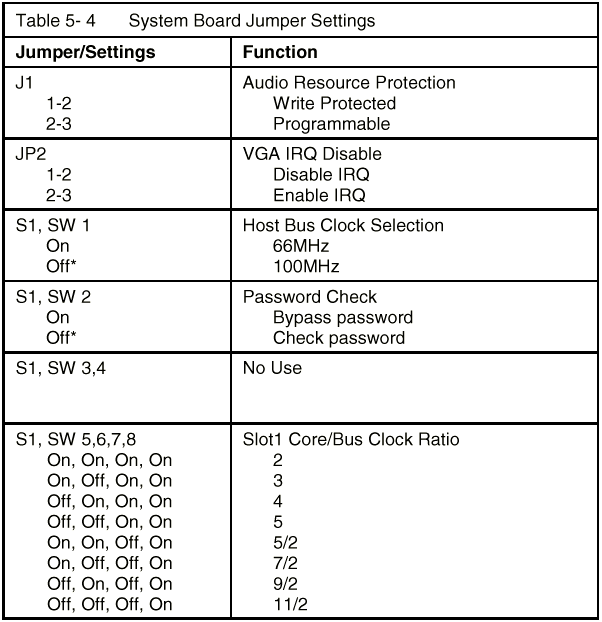

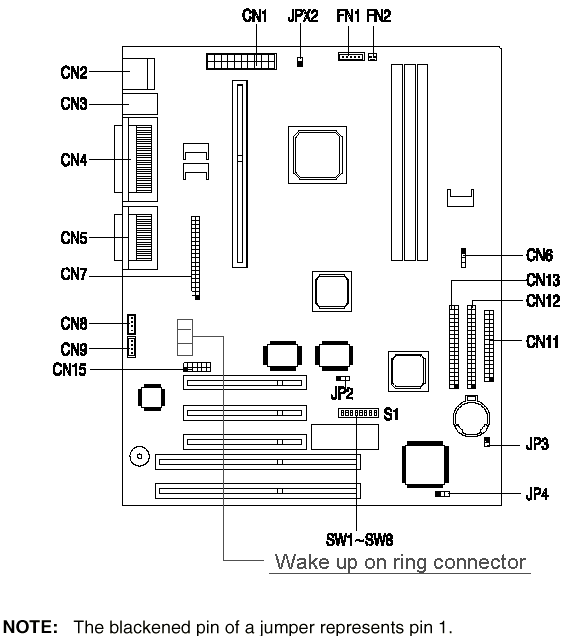

Aptiva - 2139 system board layout and jumpers

Applicable to: World-Wide, World-Wide


Search Keywords

Hint Category

System Boards, Jumper/Switch Settings, Processors

Date Created

14-07-98

Last Updated

17-02-99

Revision Date

17-02-2000

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2139

Model

all
