Service Hints & Tips |
Document ID: DETR-3WFGJL |
Aptiva - 2139/2153 DVD-ROM drive jumpers and connectors
Applicable to: World-Wide, World-Wide

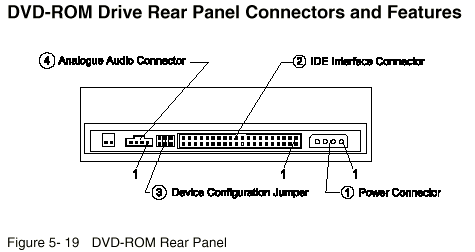

Table 5-20
|
Item |
Function |
Connect to... |
|
1 |
Power Connector |
Power Supply |
|
2 |
IDE Interface connector |
System board (CN13) |
|
3 |

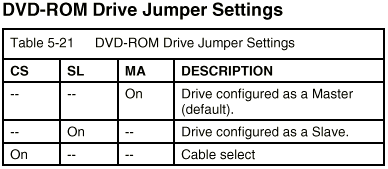

Device Configuration jumper. See table 5-21 |
-- |
|
4 |
Analog Audio connector |
System board (CN9) |
|
