Service Hints & Tips |
Document ID: DETR-3WFGRJ |
Aptiva - 2139/2153 CD-ROM drive jumpers and connectors
Applicable to: World-Wide, World-Wide

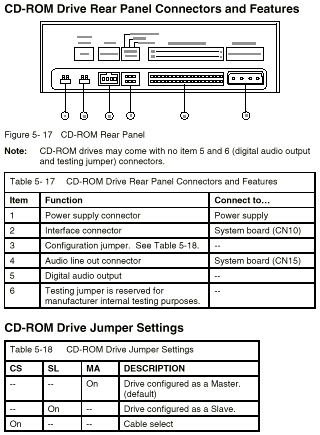

ATTENTION: Either <option 1> or <option 2> CD-ROM drive may come with your Aptiva machine. Their front panel buttons, indicators and emergency eject method may be different. The rear panel on both <option1> and <option 2> drives are the same.

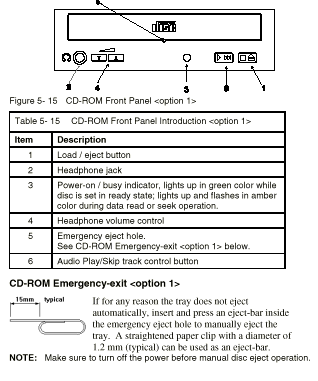

CD-ROM option 1 |

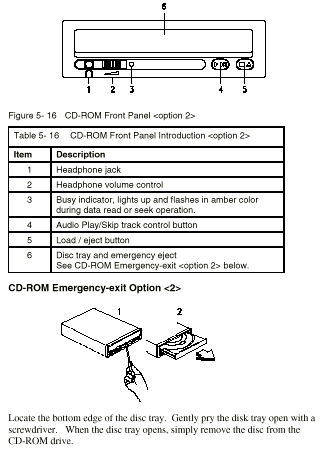

CD-ROM option 2 |
|
Search Keywords |
| |
Hint Category |
CD-ROM Drives, Jumper/Switch Settings, Hardware Installation/Configuration | |
Date Created |
16-07-98 | |
Last Updated |
11-01-99 | |
Revision Date |
11-01-2000 | |
Brand |
IBM Aptiva | |
Product Family |
Aptiva | |
Machine Type |
2139, 2153 | |
Model |
| |
TypeModel |
| |
Retain Tip (if applicable) |
| |
Reverse Doclinks |
