Service Hints & Tips

Document ID: DETR-3WFL42

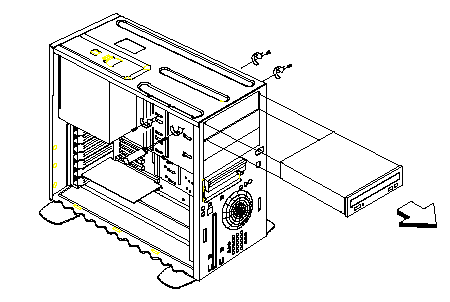

Aptiva - 2139/2164 Removals and replacements - Drives from bays 1, 2, or 3

Applicable to: World-Wide

• Disconnect all cables on the drive (note location of cables).

• Remove the screws.
  WARNING: For 5.25-In. Hard Disk Drive installation, it uses different screws from 3.5-In. Hard Disk Drive which may be installed in Bay 5.

• Pull out the drive.
