Service Hints & Tips

Document ID: DETR-3WFL9M

Aptiva - 2139/2164 Removals and replacements - Power supply

Applicable to: World-Wide

• Disconnect all necessary cables before removal (note location of cables).

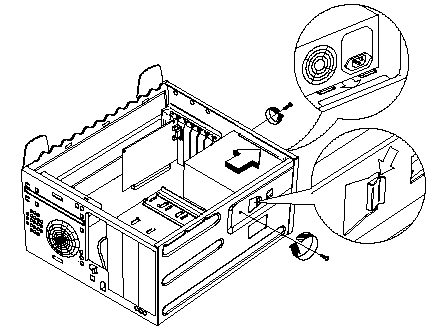

• Remove the two screws from the chassis.

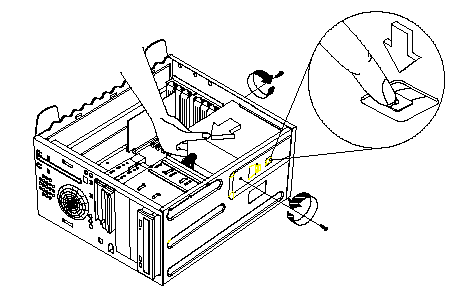

• Press the tab located on top of the housing frame just above the power supply.

• Push the power supply forward towards the CD-ROM drive to detach it from the chassis.

• Detach the power supply from the frame by removing it's four screws.

NOTE: Replacing the Power Supply

• Insert the power supply frame into its corresponding cut-away openings on the chassis.

• Align the top rails and slide in to lock.

• Secure the power supply with it's two original screws.
