Service Hints & Tips

Document ID: DETR-3WFLCJ

Aptiva - 2139/2164 Removals and replacements - Adapter cards

Applicable to: World-Wide

NOTE:
1. Before removing an adapter card, note the location of the adapter card and any cables. When removing an adapter card, install the replacement card in the same slot as the one you removed.

2. If necessary, remove cards from the adjacent slots of the failed card.

• Position the system unit such that the card is accessible to you.

• If the adapter card has cables, disconnect them. Be sure to take note of where those cables are connected. You will need to reconnect those cables when you reinstall the card.

• Remove the adapter card screw.

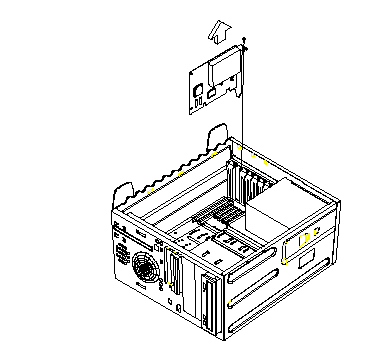

• Carefully pull the adapter card straight out of the slot so that the card does not bend.

	Search Keywords
	Document Category	Adapter Cards, Hardware Installation/Configuration
	Date Created	16-07-98
	Last Updated	24-02-99
	Revision Date	10-02-2000
	Brand	IBM Aptiva
	Product Family	Aptiva
	Machine Type	2139, 2164
	Model	all
