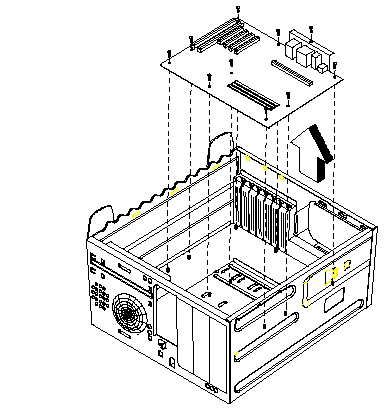

Aptiva - 2139 Removals and replacements - System board
Applicable to: World-Wide
- Remove all adapter cards.
- Disconnect all cables connected to the system board.
- Remove the screws securing the system board to the chassis.
- Lift the system board to remove from chasis.
- Remove memory (DIMM) if applicable.
- Remove processor.
NOTE: System Board Installation
- Before you re-install the new system board, the CPU retention module and the I/O Port Bracket should be assembled on the system board if they are not already installed.
- Be sure to reinstall the processor and DIMMs onto the new system board if applicable.
- Before reinstallation, position the housing on it's side. When reinstalling a new system board, push the board to the rear and align it with the front locating pin. Visually verify that the board is aligned properly, then press the board down
- After installing the system board, secure with it's original screws.
- Run the Setup Utility after correctly changing the system board.
- Upgrade the BIOS version on the new system board. See "Flash (BIOS) Update Procedure" on page 1-10.
- Run the Setup Utility after correctly changing the system board. See "BIOS Setup Utility" on page 1-12.
- Change the Machine Type and Serial Number in the BIOS for the new system. See "BIOS-contained Model Number and Serial Number" on page 1-11.
|
|
