Aptiva - 2140 - How to connect CD-ROM audio cable

Applicable to: World-Wide

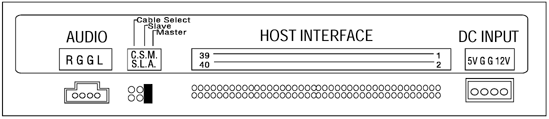

Locate the four pin audio cable connection on the back of the CD-ROM drive, this is normally labeled AUDIO or CD-AUDIO, and connect one end of the audio cable.

On Pentium MMX systems:

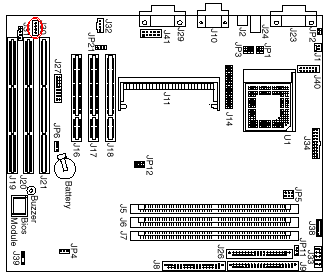

On the motherboard locate socket J30, circled in red below, and connect the other end of the audio cable.

On Pentium II systems:

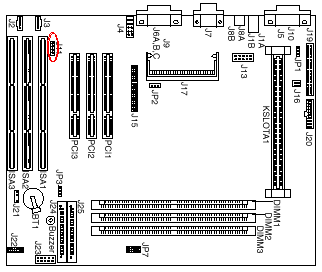

On the motherboard locate socket J11, circled in red below, and connect the other end of the audio cable.
