Service Hints & Tips |
Document ID: COBN-3G5EGW |
Aptiva - 2161/2162 CD-ROM drive jumper settings
Applicable to: World-Wide
CD-ROM Drive Jumper Settings
The CD-ROM drive is connected to the system board secondary drive connector at the factory. CD-ROM drive jumpers are set as the master drive, as shown in Figure 5-15. If an additional hard disk drive is connected to the secondary connector, it must be set as the master drive and the CD-ROM drive jumpers reset as the slave drive as shown in the figure below.

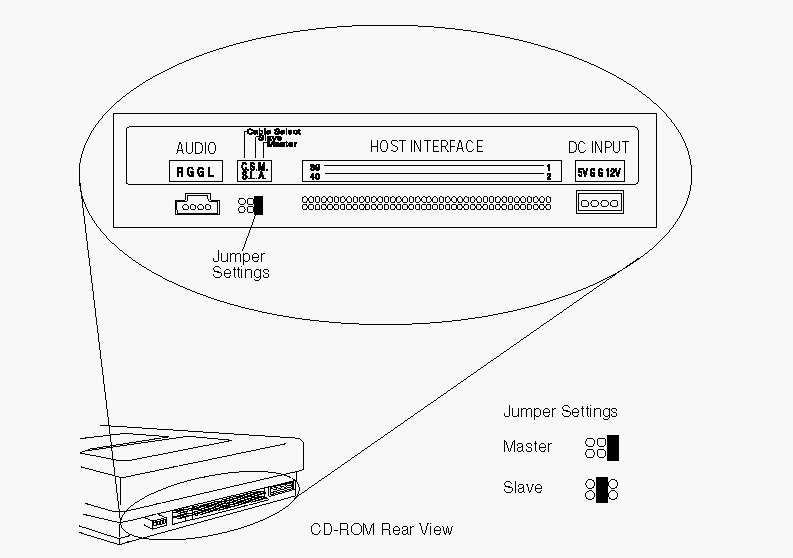

Figure 5-15. CD-ROM Drive Jumper Settings
|
Search Keywords |
| |
|
Hint Category |
Hardware Installation/Configuration, CD-ROM Drives, Jumper/Switch Settings | |
|
Date Created |
14-04-97 | |
|
Last Updated |
11-01-99 | |
|
Revision Date |
11-01-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2161, 2162 | |
|
