Service Hints & Tips

Document ID: BMOE-425LG2

TP 1400 - PCMCIA Holder Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery Assembly
• Modem Board Cover and Modem Board
• Keyboard
• Hard Disk Drive and HDD Heatsink

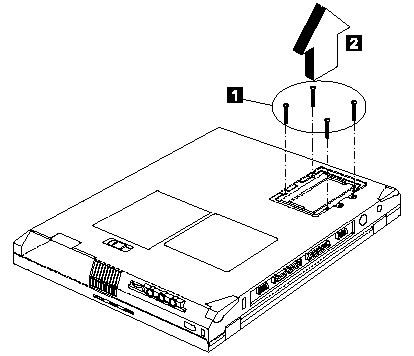

Step	Size (Quantity)	Head & Color	Torque	Memo
1	M2 x 14L (4)	Pan head, silver	1.6 kgf-cm

Note: Make sure you use the correct screw for replacement.

Note: Before removing and replacing the PCMCIA holder, make sure that the PCMCIA cards are removed and the eject levers are not sticking out.

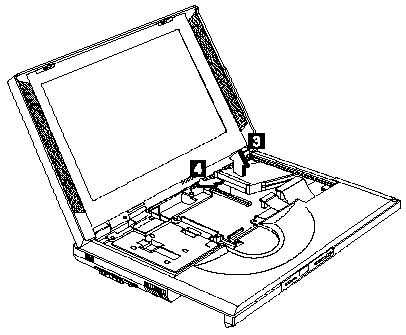

Attention: When removing the PCMCIA holder, pull them up at an angle. It cannot be removed when pulled straight up.

	Search Keywords
	Hint Category	Hardware Installation/Configuration, Hardware Maintenance Information
	Date Created	11-11-98
	Last Updated	11-11-98
	Revision Date	11-11-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad i Series 1400
	Machine Type	2611
	Model	Various
