Aptiva - 2134/2176 850 MB Hard Drive FRU 42H1816 (SL-A)
Applicable to: World-Wide
|
Primary Mfg |
Quantum |
|
Number |
850 AT |
|
Name |
Trailblazer |
|
Support |
WorldWide |
|
Interface |
IDE |
|
Format | |
|
Size |
3.5 |
|
Form Factor (Inches) |
1 |
|
Capacity |
850 MB |
|
Performance Specifications | |
|
Average seek time |
14 ms (includes setting) |
|
Track to track seek time |
5 ms (includes setting) |
|
Full stroke seek time |
28 ms (includes setting) |
|
Average rotational latency |
6.67 ms |
|
Rotational speed |
4,500 RPM |
|
Data rate disk to buffer |
29.1 to 52.0 MB/sec |
|
Data rate buffer to host | |
|
PIO Mode/Rate |
? : 16.7 MB/Sec |
|
DMA Mode/Rate |
? : 16.7 MB/Sec |
|
Buffer Size |
128 KB |
|
Interleave |
1:1 |
|
Reliability Specifications | |
|
Proj fld MTBF |
150,000 POH |
|
Start/Stop Cycles |
20,000 minimum |
|
Preventive Maintenance |
Not required |
|
Data Errors | |
|
Recoverable |
1 per 10 to the 12th power |
|
Non-recoverable |
1 per 10 to the 14th power |
|
Error Correction Method |
?? |
|
Disk Drive Configuration | |
|
Form Factor |
3.5 Inch Disks |
|
Interface |
ATA-2 |
|
Formatted Capacity |
850.01 MB |
|
Number of disks |
2 |
|
Number of Heads |
4 |
|
Bytes/Sector |
512 |
|
Track Density (TPI) |
3,794 |
|
Physical Specifications | |
|
Width |
4.0" (101.6 mm) |
|
Length |
5.75" (146.1 mm) |
|
Height |
1.0" (25.4 mm) |
|
Weight |
0.85 lbs (0.385 kg) |
|
Connector Options | |
|
ATA-2 |
40-pin dual in-line |
|
Power |
4-pin industry standard |
|
Environmental Specs | |
|
Operating | |
|
Temperature |
0 to 55 C |
|
Non-Cond Humidity |
5 to 85 % |
|
Shock |
10 G for 11 ms |
|
Vibration |
1 G peak-to-peak |
|
Altitude (feet) |
-650 to 10,000 |
|
Non-operating | |
|
Temperature |
-40 to 75 C |
|
Non-Cond Humidity |
5 to 95 % |
|
Shock |
70 G for 11 ms |
|
Vibration |
2 G peak-to-peak |
|
Altitude (feet) |
-650 to 40,000 |
|
Idle Sound Pressure |
30 dBA |
|
Idle sound Power |
3.5 bels |
|
Power Specifications | |
|
Start-up |
12.3 Watts |
|
Idle |
3.2 Watts |
|
Read/Write |
4.7 Watts |
|
Random Seeking |
?? |
|
Sleep/Standby |
1.0 Watts |

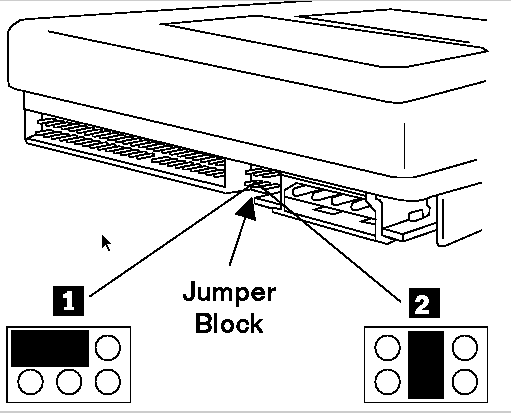

Jumper Settings
1 = Master, 2 = Slave
Note: 850 MB Hard Drives may be manufactured by Quantum or Western Digital
|
