Service Hints & Tips

Document ID: GSMH-3BTE4D

TP 701C/Cs - System View Locations

Applicable to: World-Wide

System View Locations:

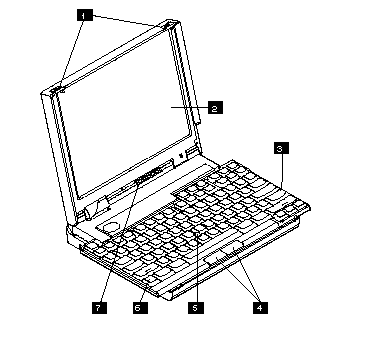

System (Front View):

1	Latches
2	LCD
3	Keyboard
4	Click Buttons
5	Trackpoint III
6	Fn Key
7	Status Indicators See ¿Reading Status Indicators—.

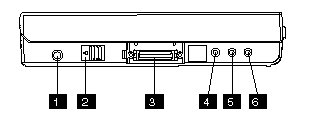

System (Left Side View):

1	Power Jack
2	Power Switch
3	Parallel/Diskette Drive Connector
4	Microphone-In Jack
5	Line-In Jack
6	Headphone-/Speaker-Out Jack

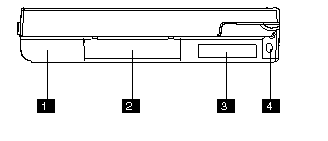

System (Right Side View):

1	Battery Pack
2	Hard Disk Drive
3	PCMCIA Access Port
4	Slot for Kensington Lock.

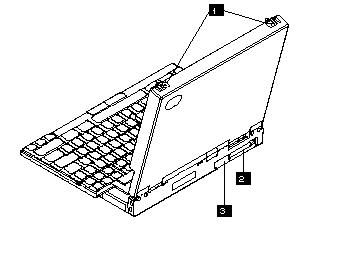

System (Rear View):

1	Latches
2	System Expansion Connector
3	Docking Door A Multiport II or Dock II can be connected to this interface to support the following features: 16-bit AT-bus interface Serial port Parallel port Keyboard and mouse Hard disk drive connection LED control signals Video signals Audio signals Diskette drive PCMCIA Power controls Power line
