Service Hints & Tips |
Document ID: COBN-3HABN2 |

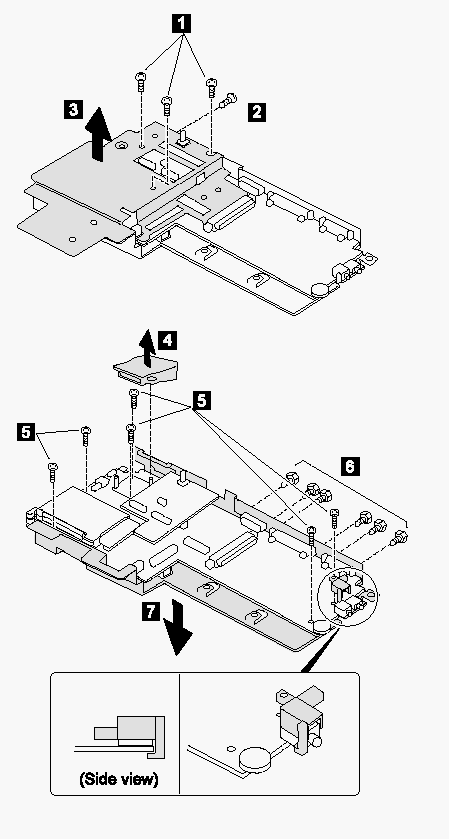

TP 380,385 - PCMCIA slot removal diagram
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
1100 PCMCIA Slot
Battery Pack (1010)
DIMM Cover (1020)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
LCD Unit (1070)
Hard Disk Drive (1060)
System Board Assembly (1080)
|
Step |
Location (Quantity) |
Length |
|
1 |
Upper shield (3) |
M 2.5 x 6mm |
|
2 |
Upper shield (1) |
M 2.5 x 8mm |
|
5 |
Lower shield (6) |
M 2.5 x 6mm |
|
6 |
Lower shield (6) |
Stud screw |
|

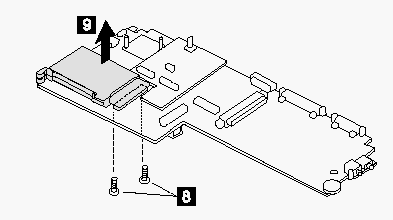

8 |
PCMCIA assembly (2) |
M 2 x 16mm |
|
Note: When replacing, make sure you use the correct screw. |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
21-05-97 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
17-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380, ThinkPad 380D, ThinkPad 380E, ThinkPad 380ED, ThinkPad 385D, ThinkPad 385E, ThinkPad 385ED | |
|
Machine Type |
2635 | |
|
Model |
Various | |
|
