Service Hints & Tips |
Document ID: GSMH-3GGJ3B |
Aptiva - 2161 Removals and replacements - Processor
Applicable to: World-Wide
2060 - Processor Removal
Attention: Processors are sensitive to static discharge.
Adapter cards (2035) if applicable.
To remove the processor: remove the processor retaining clip, raise the socket lever, remove the old
processor, insert the upgrade processor, lower the socket lever firmly, then install the processor retaining clip.
When installing, be certain the dot on the processor is aligned with the dot in the socket.
Notes:
1. Determine which type of processor you are installing and make sure the jumpers are set correctly.
2. Run the Setup Utility after installing a processor.

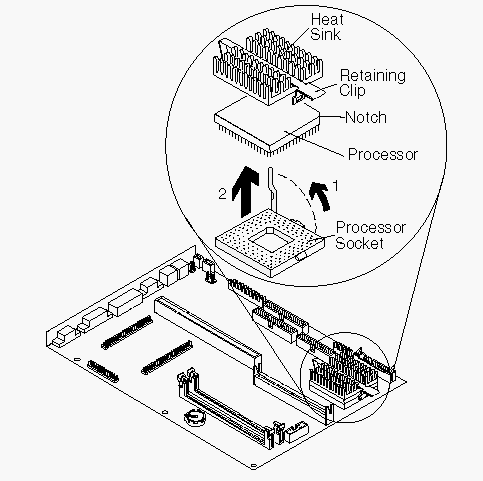

Figure 4-14. Processor removal
|
