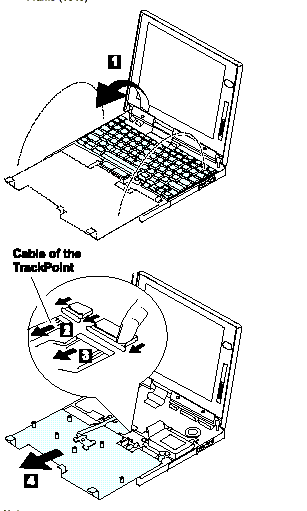

TP 560X - 1050 Keyboard Unit
Applicable to: World-Wide
1050 Keyboard Unit
Battery Pack (1030)
Frame (1040)
Note:
When replacing the frame, verify the TrackPoint III click buttons function.
(If the frame is not in place, the click buttons will not function.)
