IBM IntelliStation Z Pro (Type 6899) - Parts diagram/FRU listing
Applicable to: World-Wide

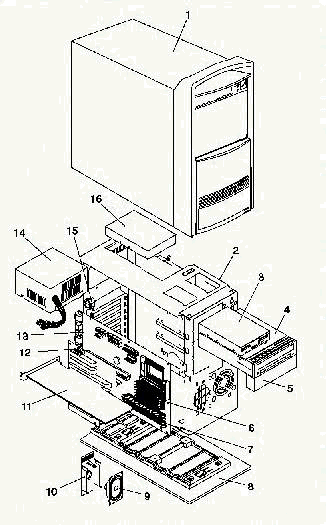

Parts Listing Index System Unit (Type 6899.)
|
1 |
Cover |
12J3028 |
|
Front Bezel Assembly |
12J3027 | |
|
2 |
Base Frame Assembly (with labels) |
12J3029 |
|
Power Switch and Cable |
60G2258 | |
|
Dual LED Cable Assembly, Hard Disk and Power |
93F2389 | |
|
Serial Port B Connector and Cable Assembly |
75H9218 | |
|
92 mm Fan Assembly |
12J3035 | |
|
3 |
3.5-Inch 1.44 MB Diskette Drive |
76F4091 |
|
Diskette Drive Cable |
06H6344 | |
|
4 |
CD-ROM (16X Max) |
02K1125 |
|
4 |
CD-ROM (16X Max) |
76H6107 |
|
5 |
5.25-Inch Blank Bezel |
12J3030 |
|
3.5-Inch Blank Bezel |
12J3031 | |
|
6 |
Processor, P6-200 MHz - 256 KB Cache |
75H9212 |
|
6 |
Processor, P6-200 MHz - 512 KB Cache (Model 17X) |
12J3036 |
|
Voltage Regulator Card |
07H1097 | |
|
7 |
Memory - 32 MB DIMM, EDO ECC |
42H2801 |
|
7 |
Memory - 64 MB DIMM, EDO ECC |
42H2829 |
|
8 |
Pedestal |
76H1735 |
|
9 |
Speaker and Cable |
01K1479 |
|
10 |
Card Guide |
75H9222 |
|
11 |
Intergraph 3D Graphics Adapter |
75H9225 |
|
4 MB Video Adapter - Matrox |
75H9227 | |
|
Ethernet Adapter, Intel 10/100 |
12J3123 | |
|
Ultra-SCSI Adapter - PCI (Adaptec) |
12J3094 | |
|
LED Cable (for Ultra-SCSI Adapter) |
75H9217 | |
|
12 |
Riser Card |
60H9446 |
|
13 |
System Board (no processor, memory) |
93H3593 |
|
Cable, Auxiliary Power Extension |
76H6766 | |
|
Cable, Wake-Up on LAN |
07H0447 | |
|
Cable, Audio - System Board to CD-ROM |
75H9219 | |
|
Lithium Battery |
33F8354 | |
|
14 |
Power Supply (200W) |
12J5109 |
|
14 |
Power Supply (200W) - Japan |
12J5111 |
|
15 |
Keylock and Key |
61G2177 |
|
16 |
2.1 GB SCSI Hard Disk Drive |
07H1119 |
|
16 |
4.5 GB SCSI Hard Disk Drive |
76H2697 |
|
16 |
SCSI Cable |
06H9674 |
|
IDE Cable |
06H6326 | |
|
SCSI LED Cable |
75H9217 | |
|
EMC Clips DASD/FDD |
12J3033 | |
|
Miscellaneous Hardware Kit |
12J3032 | |
|
Mounting Screw Kit |
93F0041 | |
|
Jumper Kit |
93F0067 |
|
